LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

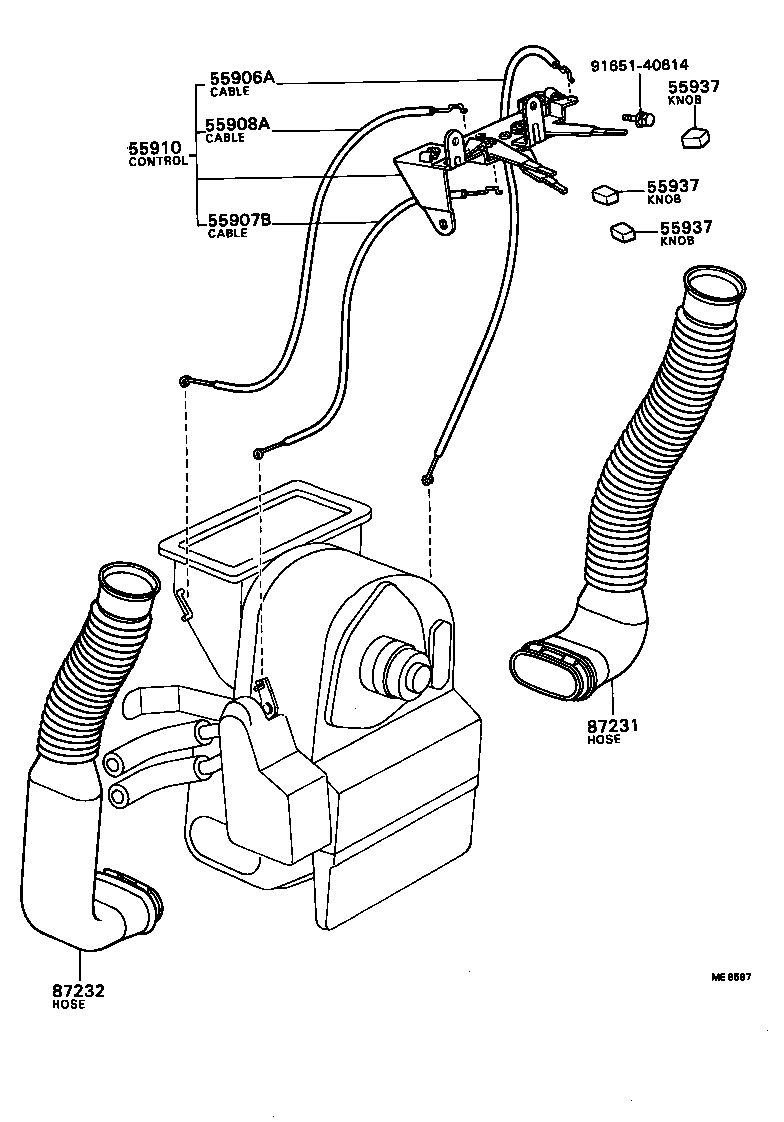

Click highlighted areas on diagram

diagram 55906A 55907B 55908A 55910 55937 55937 55937 87231 87232 9165140614
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-87601

LD10

 1
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-87602

LD10

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-87602

LD10

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-87601

LD10

 1
55937 - KNOB, HEATER CONTROL LEVER
55937-87205

LD10

 3
55937 - KNOB, HEATER CONTROL LEVER
55937-87205

LD10

 3
55937 - KNOB, HEATER CONTROL LEVER
55937-87205

LD10

 3
87231 - HOSE, HEATER DEFROSTER, RH
87231-87603

LD10

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-87603

LD10

 1
Common parts
91651-40614
