LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

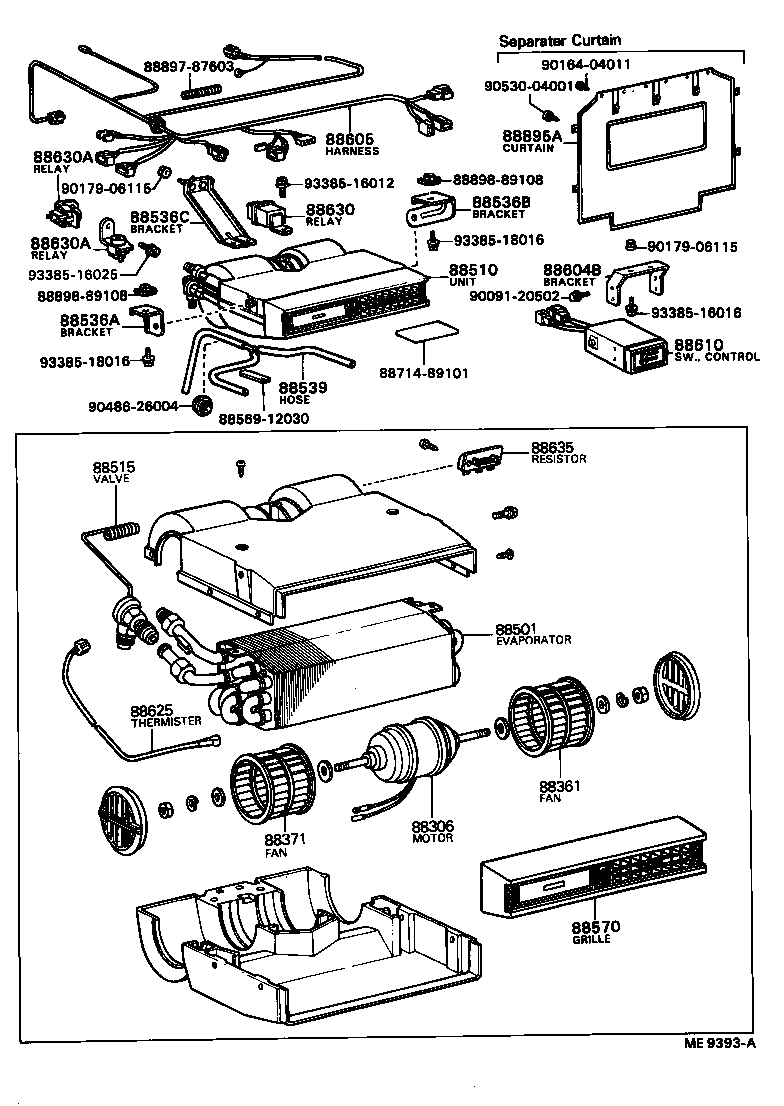

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88515 88536A 88536B 88536C 88539 8856912030 88570 88604B 88605 88610 88625 88630 88630A 88630A 88635 8871489101 88895A 8889787603 8889889108 8889889108 9009120502 9016404011 9017906115 9017906115 9048626004 9053004001 9338516012 9338516016 9338516025 9338518016 9338518016
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30300

LD10

 1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010

LD10

 1
88371 - FAN, COOLER BLOWER, NO.2
88541-10020

LD10

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30531

LD10

 1
88510 - UNIT ASSY, COOLER
88510-30671

LD10

 1
88510-87602

LD10

 1
88515 - VALVE, COOLER EXPANSION
88515-12051

LD10

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-87603

LD10

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-87601

LD10

 1
88536C - BRACKET, COOLING UNIT, NO.4
88536-87604

LD10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-87603

LD10

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-30600

LD10

 1
88604B - BRACKET, SWITCH, NO.1
88649-87607

LD10

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-87608

LD10

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-87601

LD10

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12040

LD10

 1
88630 - RELAY ASSY, COOLER
85913-14010

LD10

 1
88630A - RELAY ASSY, COOLER
88630-60020

LD10

 2
88630A - RELAY ASSY, COOLER
88630-60020

LD10

 2
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30370

LD10

 1
88895A - CURTAIN ASSY, SEPARATE
88895-87605

LD10

 1
Common parts
88569-12030
88714-89101
88897-87603
88898-89108
90091-20502
90164-04011
90179-06115
90486-26004
90530-04001
93385-16012
93385-16016
93385-16025
93385-18016
