LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

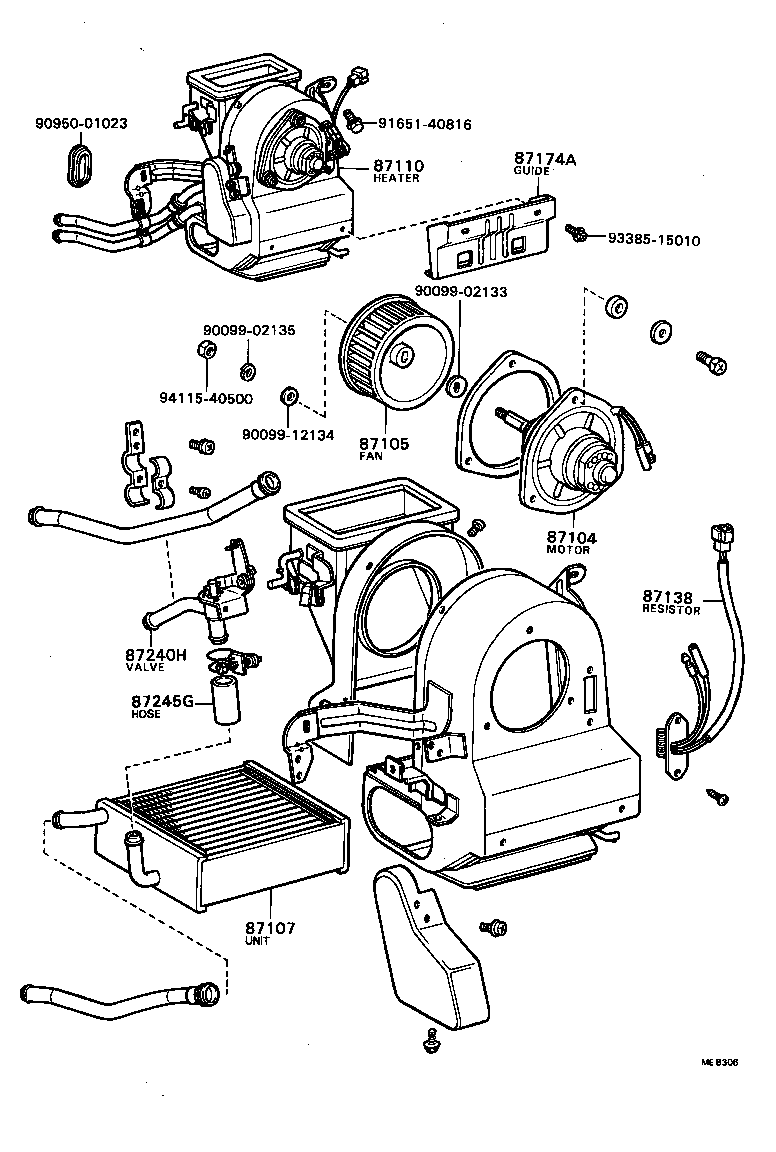

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-87603 |
LD10 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12040 |
LD10 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-87603 |
LD10 |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-87613 |
LD10 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87605 |
LD10 |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-87602 |
LD10 |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-87606 |
LD10 RR |
1 | ||
| 87240-87608 |
LD10 FR |
1 | ||
| 87245G - HOSE, HEATER RADIATOR | ||||
| 99552-20100 |
LD10 *H,L=40 |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02135 | ||||
| 90099-12134 | ||||
| 90950-01023 | ||||
| 91651-40816 | ||||
| 93385-15010 | ||||
| 94115-40500 | ||||

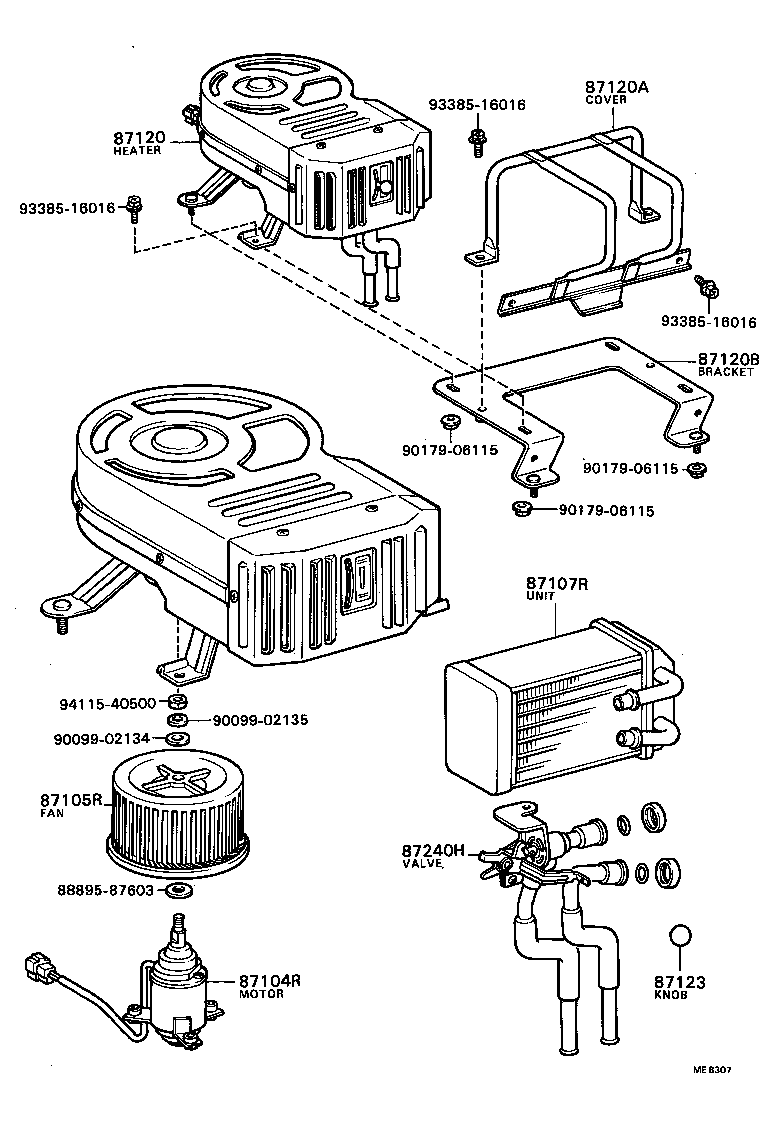

(8201-8210)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87003 |
LD10 |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
LD10 |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60100 |
LD10 |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-87614 |
LD10 |
1 | ||
| 87120A - COVER, REAR HEATER | ||||
| 87446-87602 |
LD10 |
1 | ||
| 87120B - BASE, REAR HEATER, NO.1 | ||||
| 87121-87603 |
LD10 |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 87123-10050 |
LD10 RR |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-87606 |
LD10 RR |
1 | ||
| 87240-87608 |
LD10 FR |
1 | ||
| Common parts | ||||
| 88895-87603 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90179-06115 | ||||
| 93385-16016 | ||||
| 94115-40500 | ||||
