LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

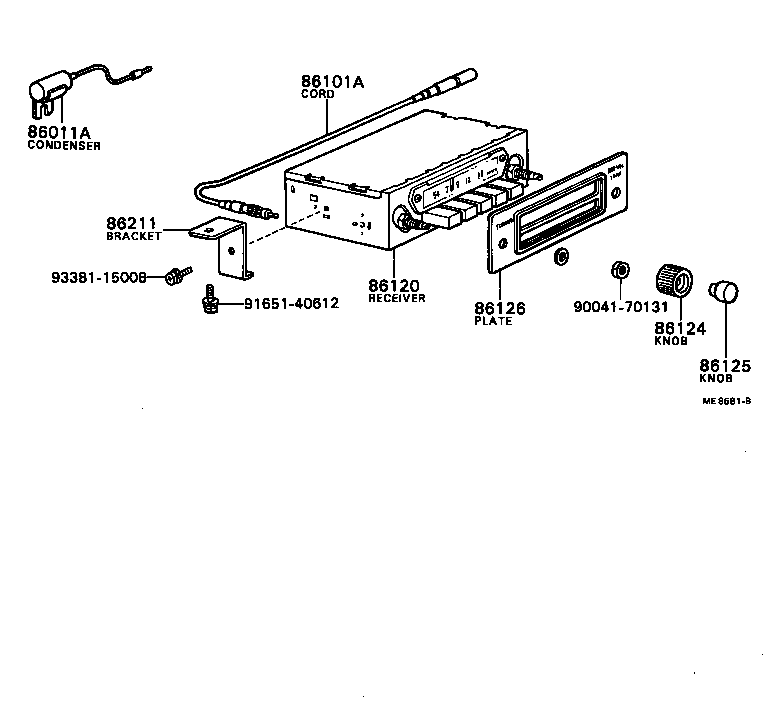

Click highlighted areas on diagram

diagram 86011A 86101A 86120 86124 86125 86126 86211 9004170131 9165140612 9338115008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90049-42038

LD10

 1
86101A - CORD SUB-ASSY, ANTENNA, NO.1
86101-87602

LD10

 1
86120 - RECEIVER ASSY, RADIO
86102-87612

LD10

AM/FM

 1
86102-87605

LD10

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86223-87501

LD10

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86223-87502

LD10

 2
86126 - PLATE, RADIO RECEIVER
86221-87206

LD10

 1
86211 - BRACKET, RADIO, NO.1
86215-87604

LD10

 1
Common parts
90041-70131
91651-40612
93381-15008
