LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

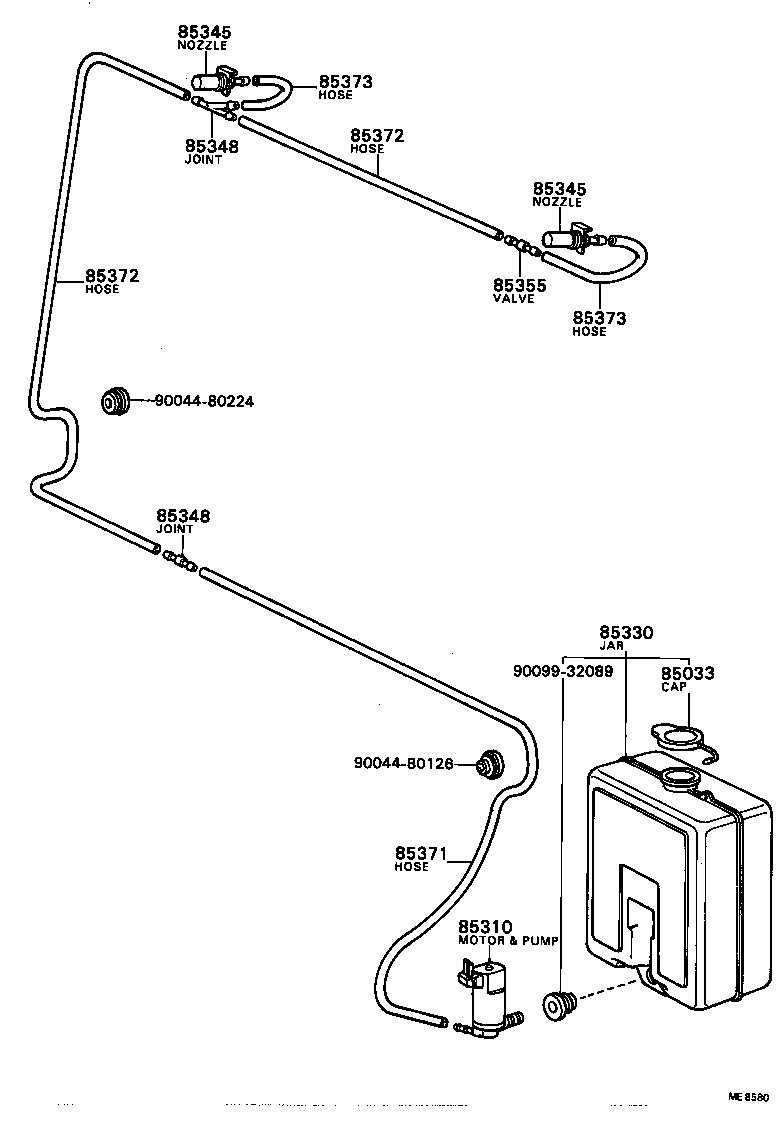

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85033-36120 |
LD10 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-87301 |
LD10 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-36140 |
LD10 |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-87001 |
LD10 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-87001 |
LD10 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
LD10 3-WAY |
1 | ||
| 85355-87201 |
LD10 2-WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
LD10 3-WAY |
1 | ||
| 85355-87201 |
LD10 2-WAY |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-30010 |
LD10 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90044-46329 |
LD10 L=1350 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33303 |
LD10 *H,L=1100 |
1 | ||
| 90446-06013 |
LD10 *H,L=400 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33303 |
LD10 *H,L=1100 |
1 | ||
| 90446-06013 |
LD10 *H,L=400 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
LD10 *H,L=140 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
LD10 *H,L=140 |
1 | ||
| Common parts | ||||
| 90044-80126 | ||||
| 90044-80224 | ||||
| 90099-32089 | ||||
