LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

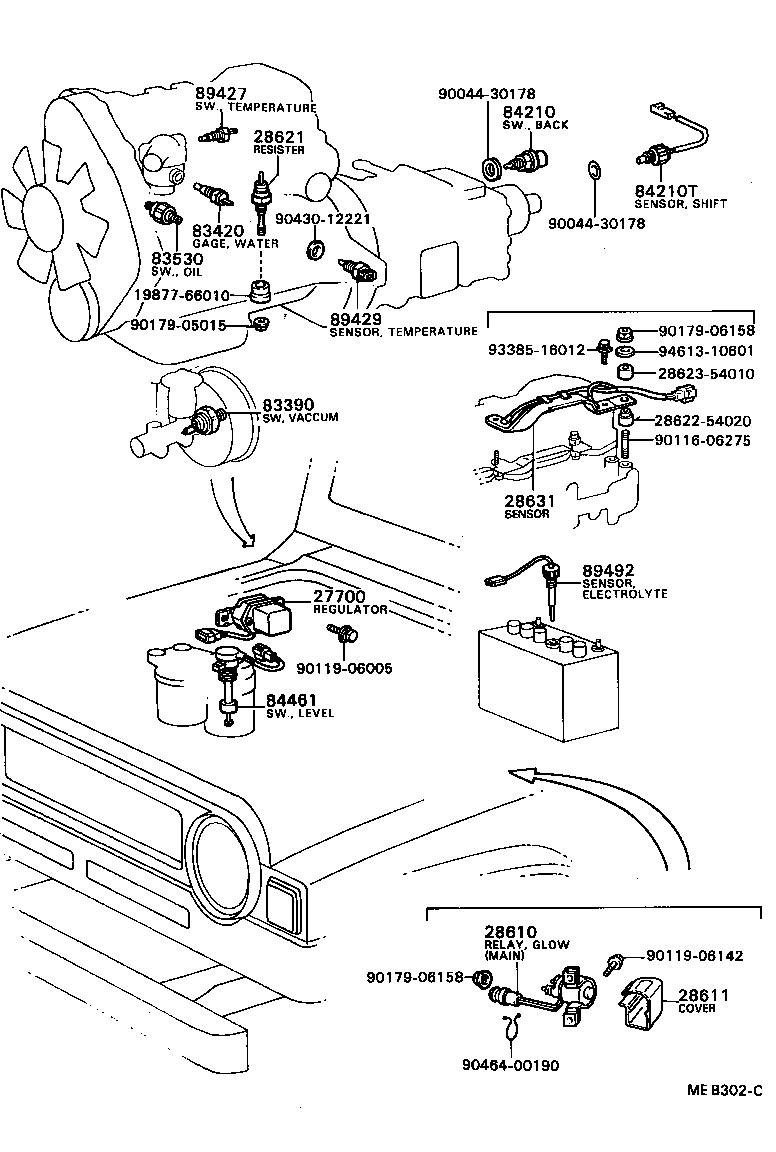

Click highlighted areas on diagram

diagram 1987766010 27700 28610 28611 28621 2862254020 2862354010 28631 83390 83420 83530 84210 84210T 84461 89427 89429 89492 9004430178 9004430178 9011606275 9011906005 9011906142 9017905015 9017906158 9017906158 9043012221 9046400190 9338516012 9461310601
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-15011

L..LD10

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54080

L..LD10

MAIN RELAY

 1
28610-54090

L..LD10

SUB RELAY

 1
28611 - COVER, GLOW PLUG RELAY
28611-54011

L..LD10

 1
28621 - RESISTOR, GLOW PLUG
28621-54031

L..LD10

 1
28631 - SENSOR, GLOW PLUG CURRENT
28631-54010

L..LD10

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LD10

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16010

LD10

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-36011

LD10

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-87303

LD10

 1
84210T - SENSOR ASSY, SHIFT POINT
84220-87603

LD10

 1
84461 - SWITCH, LEVEL WARNING
84461-30030

LD10

 1
89427 - SWITCH, TEMPERATURE DETECT
83430-96440

LD10

W/COOLER

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LD10

 1
89492 - SENSOR, ELECTROLYTE LEVEL
89492-87303

LD10

 1
Common parts
19877-66010
28622-54020
28623-54010
90044-30178
90116-06275
90119-06005
90119-06142
90179-05015
90179-06158
90430-12221
90464-00190
93385-16012
94613-10601

(8201- )

Click highlighted areas on diagram

diagram 84110 84110A 84111 84310 84450 84650 84650A 84651 84730 84730 84730A 84731 84736 85500 9004201405 9331913012 9331914012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84110-87602

LD10

 1
84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET
90984-01012

LD10

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-20032

LD10

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-87604

LD10

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-87602

LD10

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-87603

LD10

 1
84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET
90984-01012

LD10

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-20032

LD10

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-95400

LD10

FR

 1
87480-10071

LD10

RR

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-95400

LD10

FR

 1
87480-10071

LD10

RR

 1
84730A - NUT, HEATER BLOWER SWITCH
90041-70199

LD10

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-12010

LD10

 1
84736 - SPACER, HEATER BLOWER SWITCH
84734-87601

LD10

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30340

LD10

 1
Common parts
90042-01405
93319-13012
93319-14012

(8201- )

Click highlighted areas on diagram

diagram 28300 28521 28610 81980 81990 82600 82600F 82600G 82611 83320 83361 84340 84380 85940 86650C 9165140612 9165140612 9165140612 9165140612 9165140618 9331914010
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-48010

L..LD10

 1
28521 - TIMER, PREHEATING
28521-54131

L..LD10

 1
28521-54180

L..LD10

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54080

L..LD10

MAIN RELAY

 1
28610-54090

L..LD10

SUB RELAY

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-87601

LD10

 1
81990 - RELAY ASSY, TURN SIGNAL
88630-87601

LD10

 1
82600 - BLOCK ASSY, FUSE
82600-87606

LD10

 1
82600F - FUSE, FUSE BLOCK
99118-62920

LD10

20A,20A

 2
99118-62915

LD10

15A,15A

 6
99118-62910

LD10

10A

 2
82600G - PLATE, CAUTION(FOR FUSE)
88549-87601

LD10

W/COOLER

 1
82611 - COVER, FUSE BLOCK
82611-87604

LD10

 1
83320 - GAGE ASSY, FUEL SENDER
77501-87680

LD10

 1
83361 - GASKET, FUEL SENDER GAGE
83361-87201

LD10

 1
84340 - SWITCH ASSY, STOP LAMP
84340-87601

LD10

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87602

LD10

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-87701

LD10

 1
86650C - BUZZER ASSY, SEDIMENTER WARNING
86650-87601

LD10

 1
Common parts
91651-40612
91651-40618
93319-14010
