LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

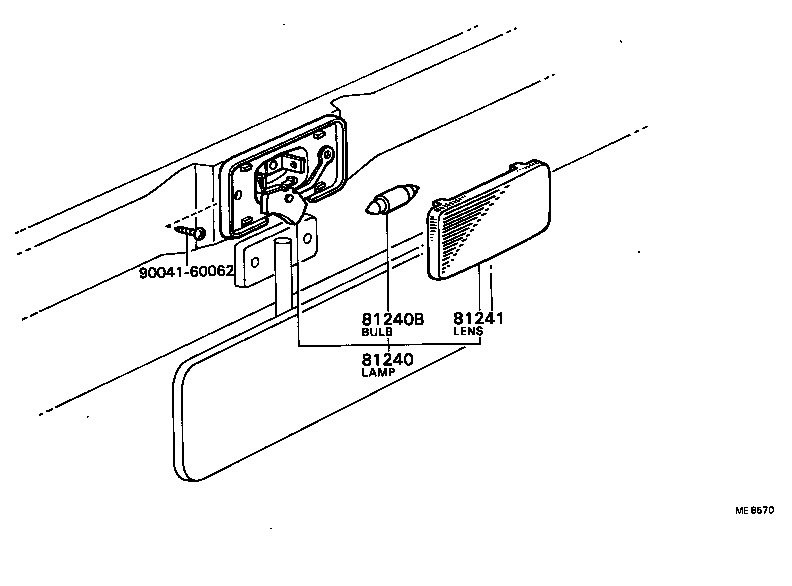

diagram 81240 81240B 81241 9004160062
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-87603

LD10

 1
81240B - BULB, ROOM LAMP, NO.1
99132-13050

LD10

12V 5W,12V 5W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-87601

LD10

 1
Common parts
90041-60062
