LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

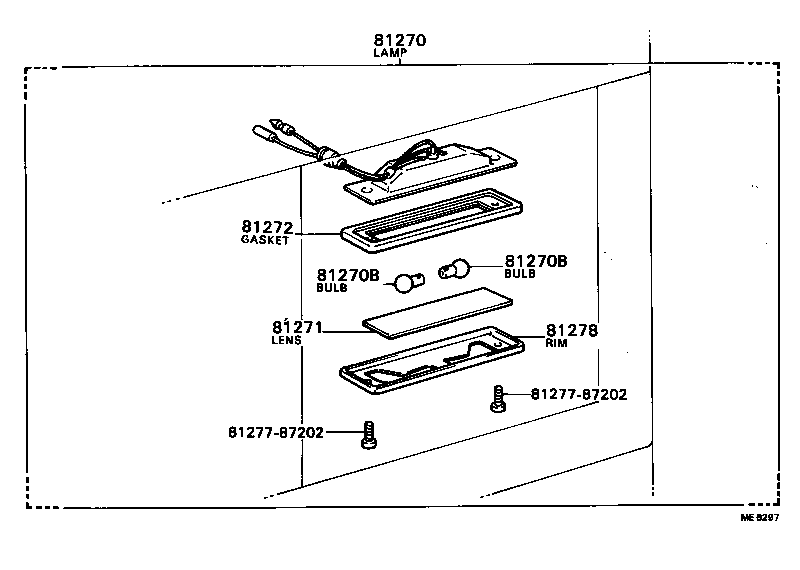

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-87602 |
LD10 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90049-51052 |
LD10 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90049-51052 |
LD10 12V 10W,12V 10W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-87502 |
LD10 |
1 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-87503 |
LD10 |
1 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81279-87502 |
LD10 |
1 | ||
| Common parts | ||||
| 81277-87202 | ||||
