LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

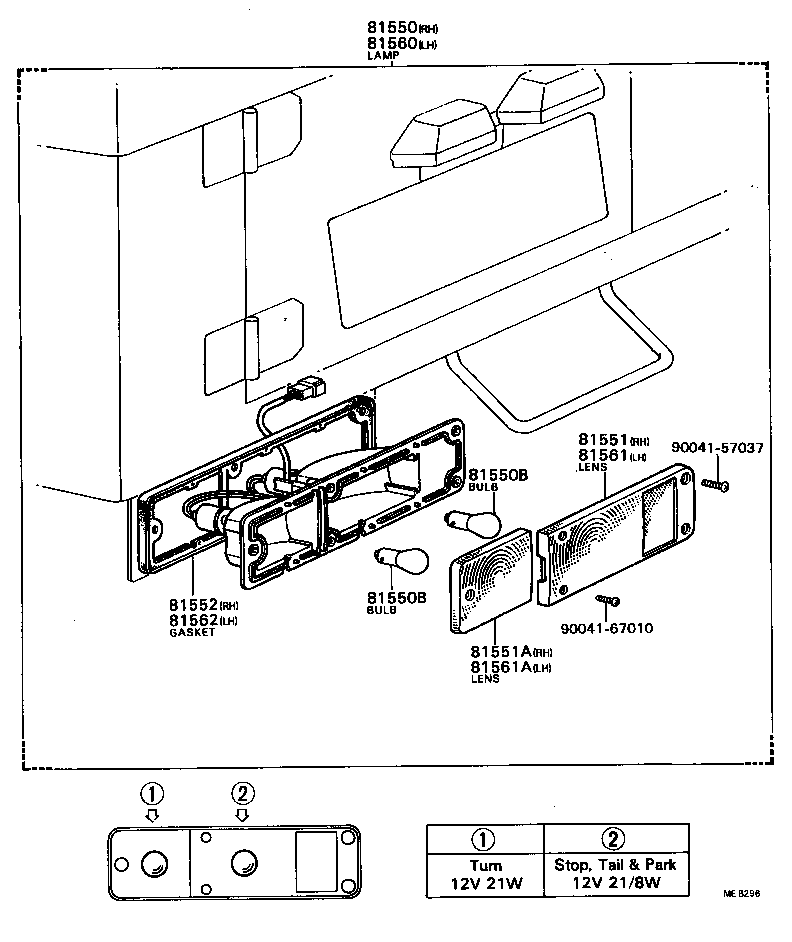

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-87607 |
LD10 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LD10 12V 21W,12V 21W |
2 | ||
| 99132-21210 |
LD10 12V 21/5W,12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LD10 12V 21W,12V 21W |
2 | ||
| 99132-21210 |
LD10 12V 21/5W,12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-87601 |
LD10 |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81531-87601 |
LD10 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-87603 |
LD10 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-87607 |
LD10 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81551-87601 |
LD10 |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81541-87601 |
LD10 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81562-87602 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-57037 | ||||
| 90041-67010 | ||||
