LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

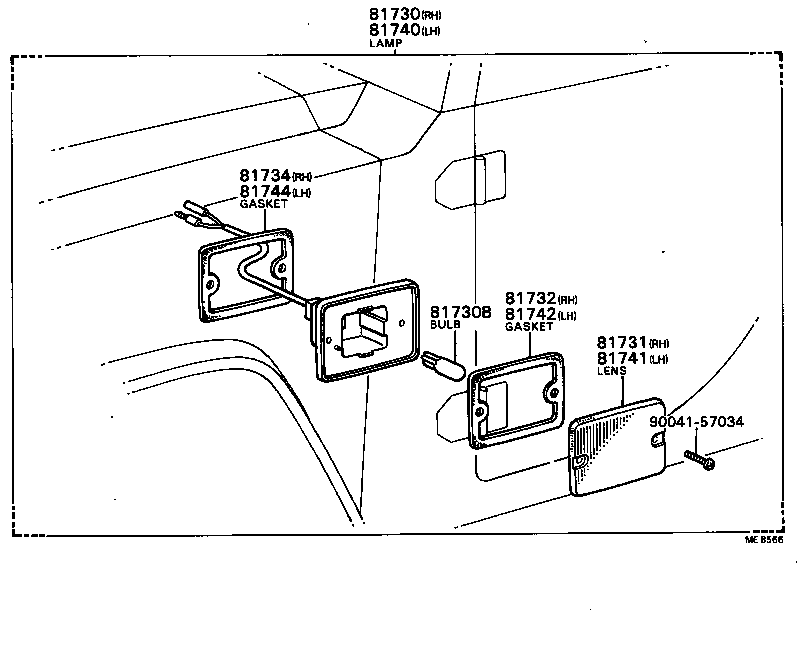

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-87604 |
LD10 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90049-51029 |
LD10 12V 5W,12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-87203 |
LD10 |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81734-87203 |
LD10 |
1 | ||
| 81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH | ||||
| 81734-87203 |
LD10 |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-87604 |
LD10 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-87203 |
LD10 |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81734-87203 |
LD10 |
1 | ||
| 81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH | ||||
| 81734-87203 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-57034 | ||||
