LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

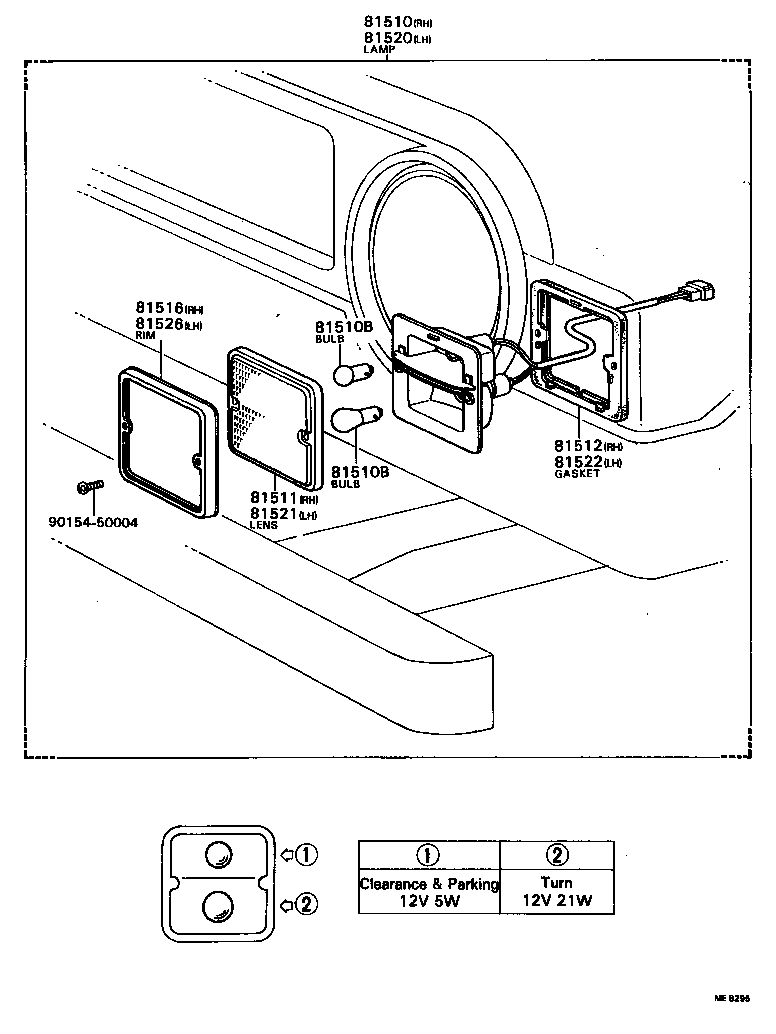

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-87617 |
LD10 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11050 |
LD10 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
LD10 12V 21W,12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11050 |
LD10 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
LD10 12V 21W,12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-87606 |
LD10 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-87602 |
LD10 |
1 | ||
| 81516 - RIM, FRONT TURN SIGNAL LAMP, RH | ||||
| 81516-87603 |
LD10 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81510-87617 |
LD10 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81511-87606 |
LD10 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-87602 |
LD10 |
1 | ||
| 81526 - RIM, FRONT TURN SIGNAL LAMP, LH | ||||
| 81516-87603 |
LD10 |
1 | ||
| Common parts | ||||
| 90154-50004 | ||||
