LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

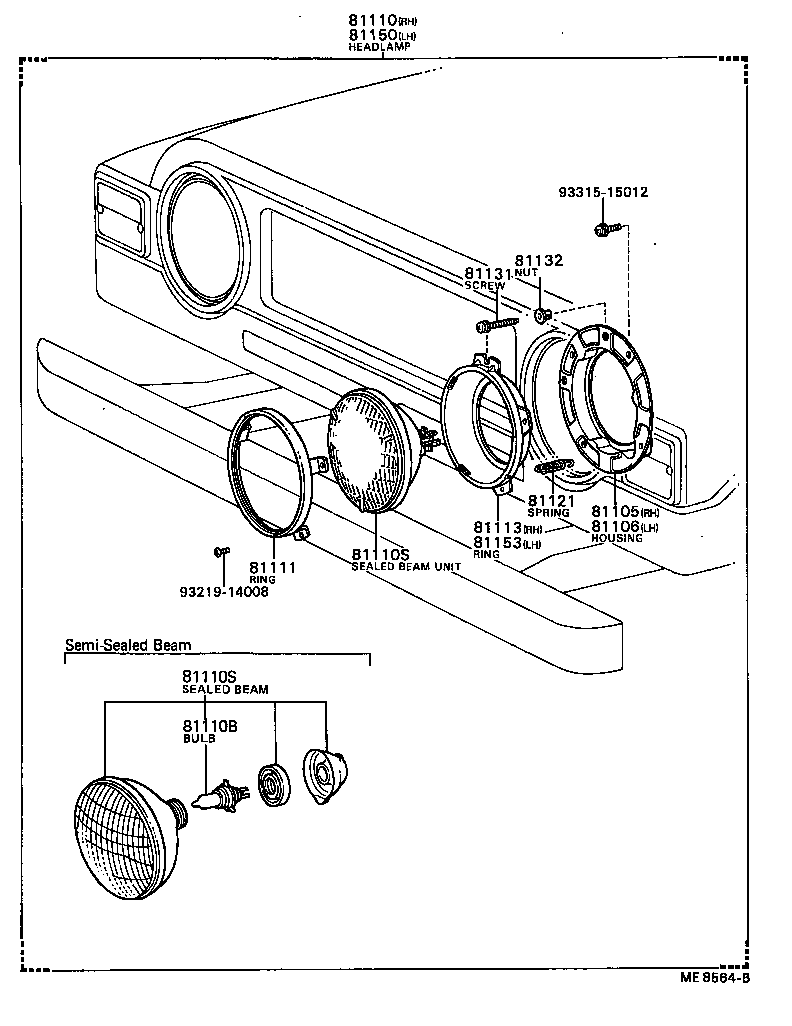

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-87610 |
LD10 |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81105-87610 |
LD10 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-69195 |
LD10 HALOGEN |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
LD10 12V 60/55W,*HAL *WH,12V 60/55W |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90049-50029 |
LD10 12V 60/55W,HALOGEN |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90049-50029 |
LD10 12V 60/55W,HALOGEN |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-12421 |
LD10 |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-10061 |
LD10 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90045-06104 |
LD10 |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16010 |
LD10 |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90041-89003 |
LD10 |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-69195 |
LD10 HALOGEN |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-10021 |
LD10 |
1 | ||
| Common parts | ||||
| 93219-14008 | ||||
| 93315-15012 | ||||
