LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

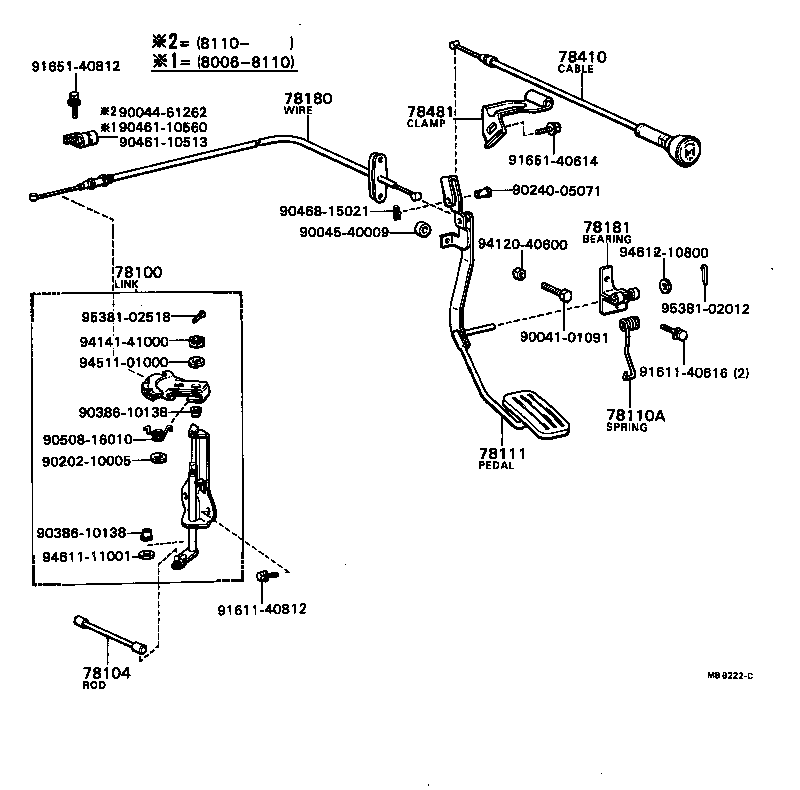

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-87602 |
LD10 |
1 | ||
| 78100-87603 |
LD10 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LD10 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90045-08074 |
LD10 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-87604 |
LD10 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-87615 |
LD10 |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78112-87601 |
LD10 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-87602 |
LD10 |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-01091 | ||||
| 90044-61262 | ||||
| 90045-40009 | ||||
| 90202-10005 | ||||
| 90240-05071 | ||||
| 90386-10138 | ||||
| 90461-10513 | ||||
| 90461-10560 | ||||
| 90468-15021 | ||||
| 90508-16010 | ||||
| 91611-40616 | ||||
| 91611-40812 | ||||
| 91651-40614 | ||||
| 91651-40812 | ||||
| 94120-40600 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 94612-10800 | ||||
| 95381-02012 | ||||
| 95381-02518 | ||||
