LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

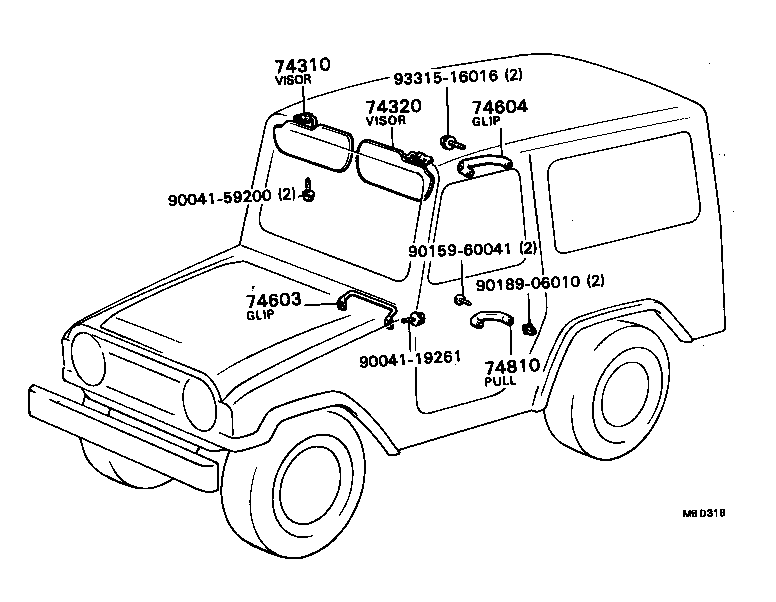

Click highlighted areas on diagram

diagram 74310 74320 74603 74604 74810 9004119261 9004159200 9015960041 9018906010 9331516016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-87605

LD10

 1
74310-87607

LD10

 1
74320 - VISOR ASSY, LH
74320-87608

LD10

 1
74320-87610

LD10

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74611-87603

LD10

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74617-87202

LD10

 2
74810 - PULL ASSY, DOOR, INSIDE
74811-87201

LD10

 2
Common parts
90041-19261
90041-59200
90159-60041
90189-06010
93315-16016
