LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 72110S 72120S 72510 72520 9004119140 9004201437 9004386046 9011908174 9052308001 9161160816 9166160825 9166160825
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-87620

LD10

FB

 1
71071-87618

LD10

VL

 1
71071-87633

LD10

FB

 1
71071-87626

LD10

VL

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-87619

LD10

VL

 1
71072-87621

LD10

FB

 1
71072-87623

LD10

VL

 1
71072-87628

LD10

FB

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-87634

LD10

FB

 1
71073-87626

LD10

VL

 1
71073-87621

LD10

VL

 1
71073-87623

LD10

FB

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-87621

LD10

VL

 1
71073-87623

LD10

FB

 1
71073-87626

LD10

VL

 1
71073-87634

LD10

FB

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-87623

LD10

FB

 1
71410-87621

LD10

VL

 1
71410-87625

LD10

VL

 1
71410-87632

LD10

FB

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-87628

LD10

VL

 1
71420-87623

LD10

VL

 1
71420-87637

LD10

FB

 1
71420-87625

LD10

FB

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-87623

LD10

VL

 1
71430-87625

LD10

FB

 1
71430-87630

LD10

VL

 1
71430-87638

LD10

FB

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-87643

LD10

FB

 1
71440-87627

LD10

FB

 1
71440-87625

LD10

VL

 1
71440-87633

LD10

VL

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-87609

LD10

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-87605

LD10

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-87601

LD10

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-87603

LD10

 1
Common parts
90041-19140
90042-01437
90043-86046
90119-08174
90523-08001
91611-60816
91661-60825

(8301- )

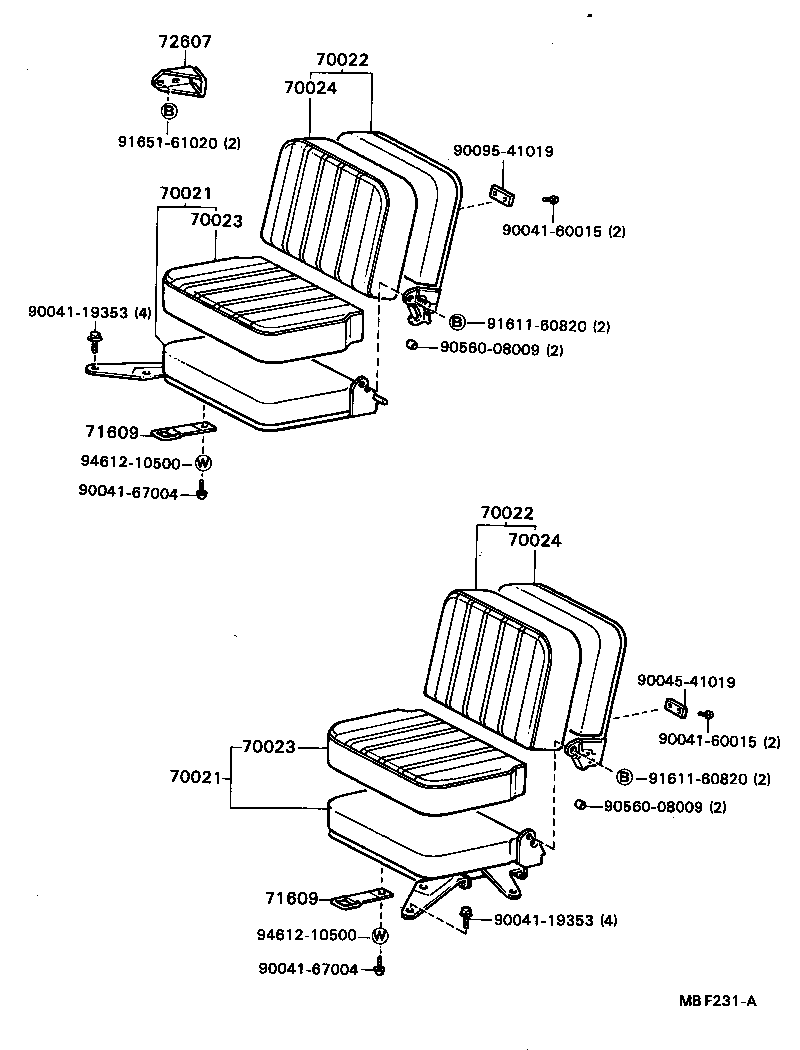

Click highlighted areas on diagram

diagram 70021 70021 70022 70022 70023 70023 70024 70024 71609 71609 72607 9004119353 9004119353 9004160015 9004160015 9004167004 9004167004 9004541019 9009541019 9056008009 9056008009 9161160820 9161160820 9165161020 9461210500 9461210500
Part # Description Qty Price
70021 - CUSHION ASSY, NO.2 SEAT
71450-87626

LD10

VL,RH

 1
71450-87628

LD10

FB,RH

 1
71460-87621

LD10

VL,LH

 1
71460-87623

LD10

FB,LH

 1
70021 - CUSHION ASSY, NO.2 SEAT
71450-87626

LD10

VL,RH

 1
71450-87628

LD10

FB,RH

 1
71460-87621

LD10

VL,LH

 1
71460-87623

LD10

FB,LH

 1
70022 - BACK ASSY, NO.2 SEAT
71490-87628

LD10

FB,LH

 1
71480-87642

LD10

FB,RH

 1
71490-87623

LD10

VL,LH

 1
71480-87637

LD10

VL,RH

 1
70022 - BACK ASSY, NO.2 SEAT
71490-87628

LD10

FB,LH

 1
71480-87642

LD10

FB,RH

 1
71490-87623

LD10

VL,LH

 1
71480-87637

LD10

VL,RH

 1
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-87626

LD10

FB,RH

 1
71076-87612

LD10

VL,LH

 1
71075-87621

LD10

VL,RH

 1
71076-87618

LD10

FB,LH

 1
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-87626

LD10

FB,RH

 1
71076-87612

LD10

VL,LH

 1
71075-87621

LD10

VL,RH

 1
71076-87618

LD10

FB,LH

 1
70024 - COVER ASSY, NO.2 SEAT BACK
71077-87639

LD10

FB,RH

 1
71078-87621

LD10

VL,LH

 1
71077-87634

LD10

VL,RH

 1
71078-87626

LD10

FB,LH

 1
70024 - COVER ASSY, NO.2 SEAT BACK
71077-87639

LD10

FB,RH

 1
71078-87621

LD10

VL,LH

 1
71077-87634

LD10

VL,RH

 1
71078-87626

LD10

FB,LH

 1
71609 - BAND SUB-ASSY, REAR SIDE SEAT
72601-87606

LD10

 1
71609 - BAND SUB-ASSY, REAR SIDE SEAT
72601-87606

LD10

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72692-87603

LD10

LH

 1
72691-87603

LD10

RH

 1
Common parts
90041-19353
90041-60015
90041-67004
90045-41019
90095-41019
90560-08009
91611-60820
91651-61020
94612-10500
