LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

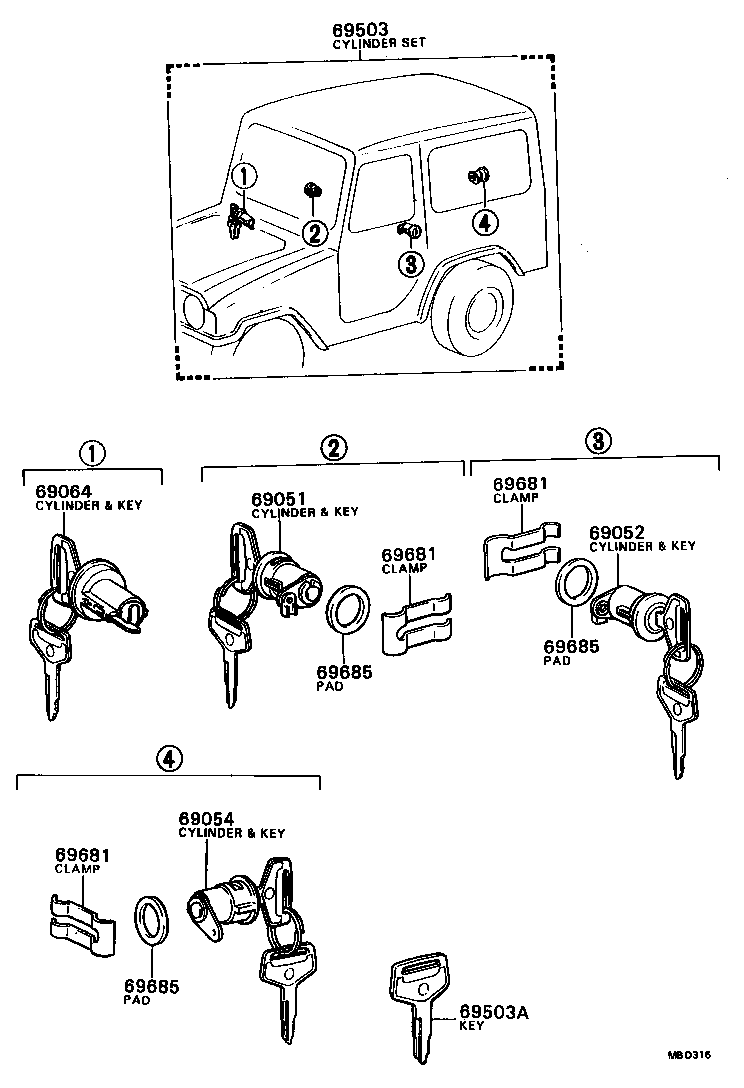

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-87604 |
LD10 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-87602 |
LD10 |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69054-87603 |
LD10 |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69064-87608 |
LD10 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-87653 |
LD10 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00082 |
LD10 |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-87201 |
LD10 |
3 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-87201 |
LD10 |
3 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-87201 |
LD10 |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-87201 |
LD10 DOOR |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-87201 |
LD10 DOOR |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-87201 |
LD10 DOOR |
3 | ||
