LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

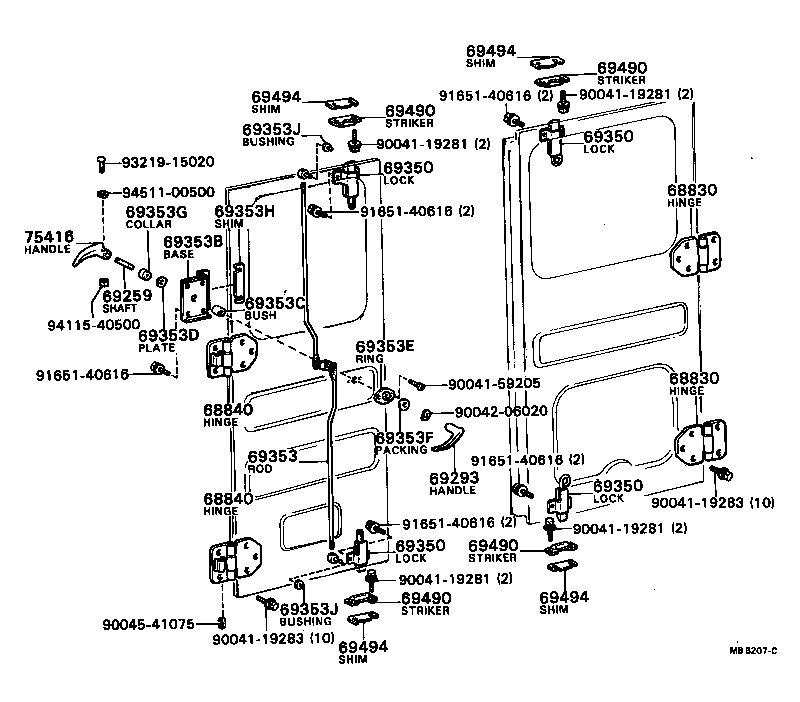

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 64501-87603 |
LD10 |
2 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 64501-87603 |
LD10 |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 64502-87604 |
LD10 |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 64502-87604 |
LD10 |
2 | ||
| 69259 - SHAFT, BACK DOOR HANDLE | ||||
| 69259-87601 |
LD10 |
1 | ||
| 69293 - HANDLE, BACK DOOR | ||||
| 69255-87601 |
LD10 |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 66130-87602 |
LD10 LH |
2 | ||
| 66110-87602 |
LD10 RH |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 66130-87602 |
LD10 LH |
2 | ||
| 66110-87602 |
LD10 RH |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 66130-87602 |
LD10 LH |
2 | ||
| 66110-87602 |
LD10 RH |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 66130-87602 |
LD10 LH |
2 | ||
| 66110-87602 |
LD10 RH |
2 | ||
| 69353 - ROD, BACK DOOR LOCK CONTROL, CENTER | ||||
| 66106-87602 |
LD10 |
1 | ||
| 69353B - BASE ASSY, SWING GATE LOCK HANDLE | ||||
| 66105-87601 |
LD10 |
1 | ||
| 69353C - BUSH, SWING GATE LOCK HANDLE | ||||
| 66157-87601 |
LD10 |
1 | ||
| 69353D - PLATE, SWING GATE HANDLE LOCK | ||||
| 66158-87602 |
LD10 |
1 | ||
| 69353E - RING, SWING GATE HANDLE | ||||
| 66159-87601 |
LD10 |
1 | ||
| 69353F - PACKING, SWING GATE HANDLE | ||||
| 66161-87602 |
LD10 |
1 | ||
| 69353G - COLLAR, SWING GATE LOCK HANDLE | ||||
| 66167-87601 |
LD10 |
1 | ||
| 69353H - SHIM, SWING GATE HANDLE BASE | ||||
| 66169-87601 |
LD10 T=1.6 |
1 | ||
| 66168-87601 |
LD10 T=1.0 |
1 | ||
| 69353J - BUSHING(FOR JOINT) | ||||
| 69395-20020 |
LD10 |
1 | ||
| 69353J - BUSHING(FOR JOINT) | ||||
| 69395-20020 |
LD10 |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 66137-87603 |
LD10 |
4 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 66137-87603 |
LD10 |
4 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 66137-87603 |
LD10 |
4 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 66137-87603 |
LD10 |
4 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69456-87601 |
LD10 T=0.8 |
2 | ||
| 69457-87601 |
LD10 T=1.6 |
2 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69456-87601 |
LD10 T=0.8 |
2 | ||
| 69457-87601 |
LD10 T=1.6 |
2 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69456-87601 |
LD10 T=0.8 |
2 | ||
| 69457-87601 |
LD10 T=1.6 |
2 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69456-87601 |
LD10 T=0.8 |
2 | ||
| 69457-87601 |
LD10 T=1.6 |
2 | ||
| 75416 - HANDLE, TAIL GATE, INSIDE | ||||
| 66181-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19281 | ||||
| 90041-19283 | ||||
| 90041-59205 | ||||
| 90042-06020 | ||||
| 90045-41075 | ||||
| 91651-40616 | ||||
| 93219-15020 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
