LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

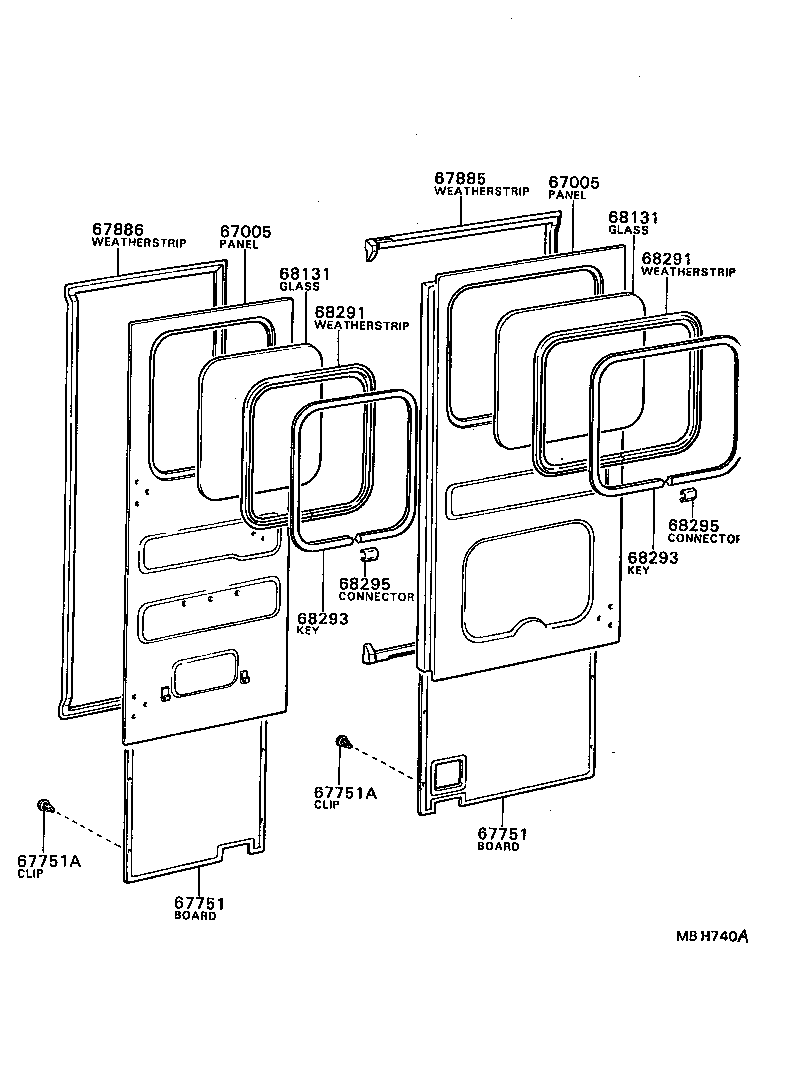

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 64402-87628 |
LD10 LH |
1 | ||
| 64401-87612 |
LD10 RH |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 64402-87628 |
LD10 LH |
1 | ||
| 64401-87612 |
LD10 RH |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67603-87601 |
LD10 RH |
1 | ||
| 67604-87603 |
LD10 LH |
1 | ||
| 67603-87604 |
LD10 RH |
1 | ||
| 67604-87601 |
LD10 LH |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67603-87601 |
LD10 RH |
1 | ||
| 67604-87603 |
LD10 LH |
1 | ||
| 67603-87604 |
LD10 RH |
1 | ||
| 67604-87601 |
LD10 LH |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0906921 |
LD10 BLACK,BLACK |
15 | ||
| 90467-0906903 |
LD10 GRAY,GRAY |
15 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0906921 |
LD10 BLACK,BLACK |
15 | ||
| 90467-0906903 |
LD10 GRAY,GRAY |
15 | ||
| 67885 - WEATHERSTRIP, BACK DOOR, RH | ||||
| 64621-87602 |
LD10 |
1 | ||
| 67886 - WEATHERSTRIP, BACK DOOR, LH | ||||
| 64622-87602 |
LD10 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 64612-87603 |
LD10 LH,*TEM,T=4.0 |
1 | ||
| 64611-87602 |
LD10 RH,*TEM,T=4.0 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 64612-87603 |
LD10 LH,*TEM,T=4.0 |
1 | ||
| 64611-87602 |
LD10 RH,*TEM,T=4.0 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 64614-87603 |
LD10 LH |
1 | ||
| 64613-87602 |
LD10 RH |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 64614-87603 |
LD10 LH |
1 | ||
| 64613-87602 |
LD10 RH |
1 | ||
| 68293 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64616-87603 |
LD10 LH |
1 | ||
| 64615-87602 |
LD10 RH |
1 | ||
| 68293 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64616-87603 |
LD10 LH |
1 | ||
| 64615-87602 |
LD10 RH |
1 | ||
| 68295 - CONNECTOR, BACK DOOR WEATHERSTRIP WEDGE | ||||
| 75578-87201 |
LD10 |
2 | ||
| 68295 - CONNECTOR, BACK DOOR WEATHERSTRIP WEDGE | ||||
| 75578-87201 |
LD10 |
2 | ||
