LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

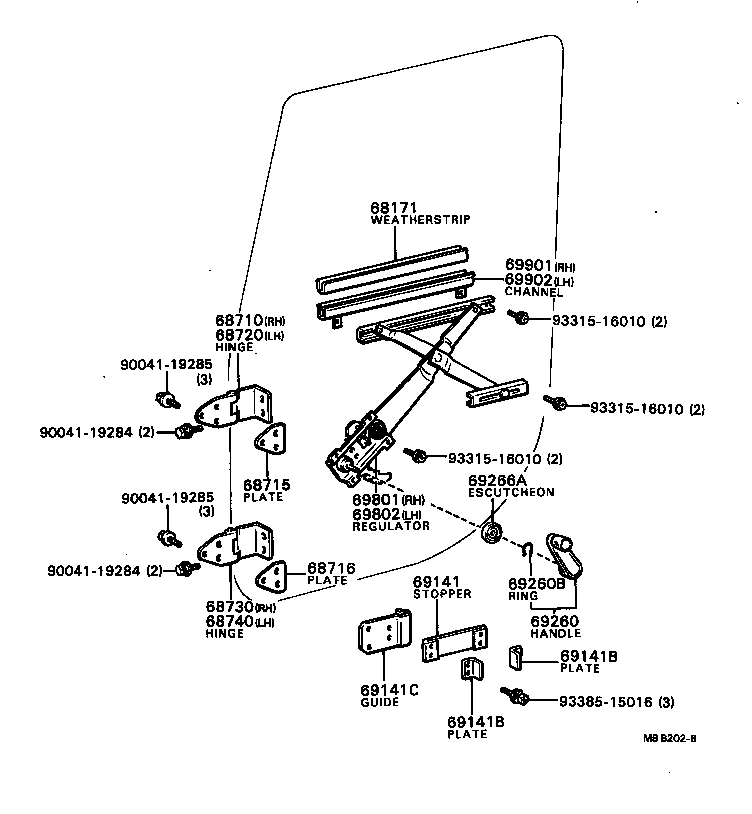

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68171-87601 |
LD10 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-87604 |
LD10 |
1 | ||
| 68715 - PLATE, FRONT DOOR HINGE, UPPER | ||||
| 68738-87601 |
LD10 |
2 | ||
| 68716 - PLATE, FRONT DOOR HINGE, LOWER | ||||
| 68738-87601 |
LD10 |
2 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-87604 |
LD10 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68710-87604 |
LD10 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68720-87604 |
LD10 |
1 | ||
| 69141 - STOPPER, FRONT DOOR OPEN | ||||
| 68753-87601 |
LD10 |
2 | ||
| 69141B - PLATE, DOOR CHECK OPEN STOPPER | ||||
| 68625-87601 |
LD10 |
4 | ||
| 69141B - PLATE, DOOR CHECK OPEN STOPPER | ||||
| 68625-87601 |
LD10 |
4 | ||
| 69141C - GUIDE, FRONT DOOR OPEN STOPPER | ||||
| 68754-87602 |
LD10 |
2 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-10040 |
LD10 |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
LD10 |
2 | ||
| 69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR) | ||||
| 69266-87201 |
LD10 |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-87601 |
LD10 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-87601 |
LD10 |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-87601 |
LD10 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69901-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19284 | ||||
| 90041-19285 | ||||
| 93315-16010 | ||||
| 93385-15016 | ||||
