LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

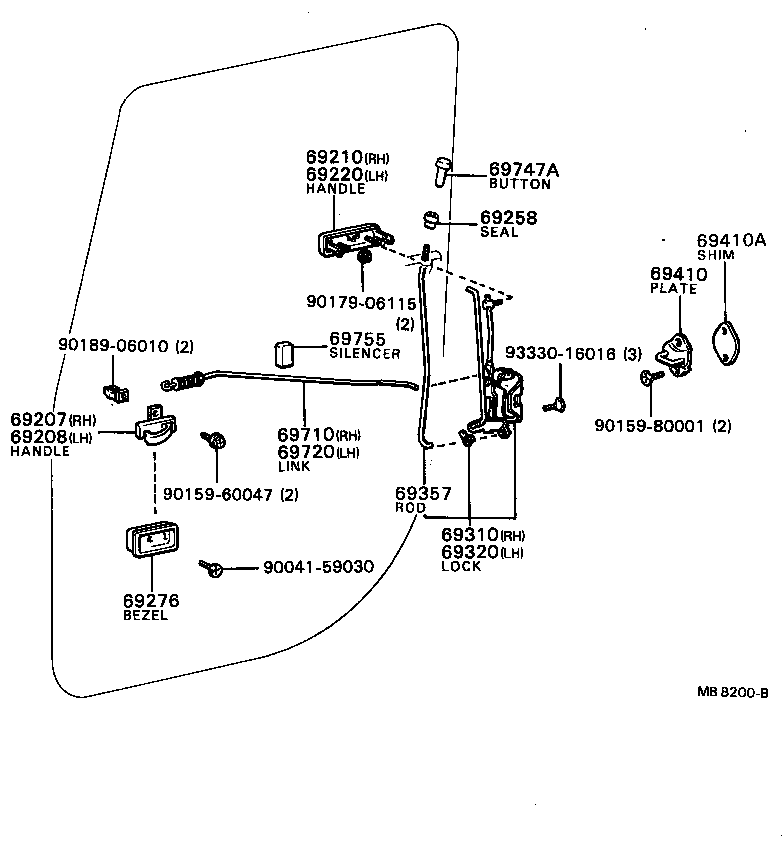

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69258 69276 69310 69320 69357 69410 69410A 69710 69720 69747A 69755 9004159030 9015960047 9015980001 9017906115 9018906010 9333016016
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69207-87201

LD10

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69207-87201

LD10

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-87602

LD10

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-87602

LD10

 1
69258 - SEAL, DOOR OUTSIDE PANEL HOLE
90480-10102

LD10

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-87201

LD10

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-87604

LD10

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-87604

LD10

 1
69357 - ROD, FRONT DOOR LOCKING CONTROL PUSH
69757-87603

LD10

RH

 1
69758-87603

LD10

LH

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87501

LD10

 2
69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE
69491-87201

LD10

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-87603

LD10

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-87602

LD10

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-22010

LD10

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-87601

LD10

 2
Common parts
90041-59030
90159-60047
90159-80001
90179-06115
90189-06010
93330-16016
