LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

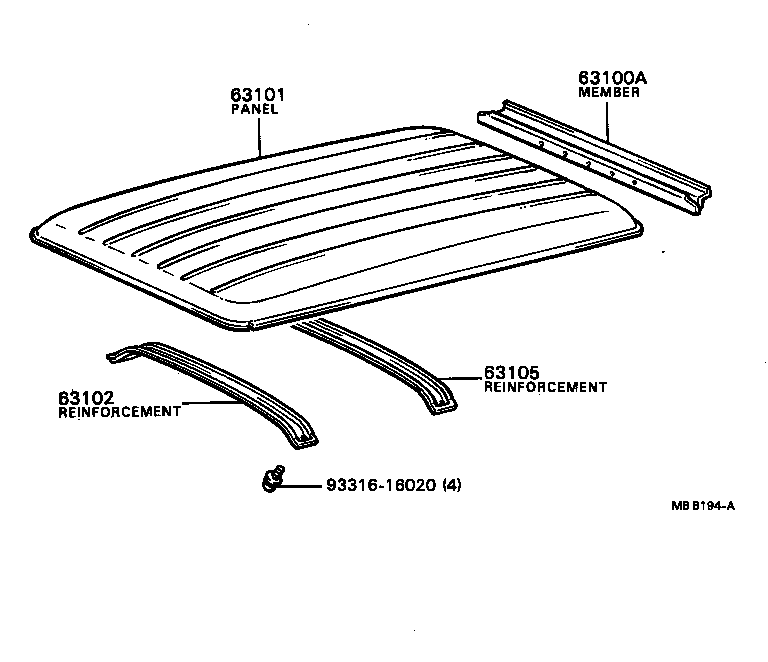

diagram 63100A 63101 63102 63105 9331616020
Part # Description Qty Price
63100A - MEMBER, BACK DOOR OPENING, UPPER
61621-87603

LD10

 1
63101 - PANEL SUB-ASSY, ROOF
63111-87605

LD10

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63321-87606

LD10

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63321-87606

LD10

 1
Common parts
93316-16020
