LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

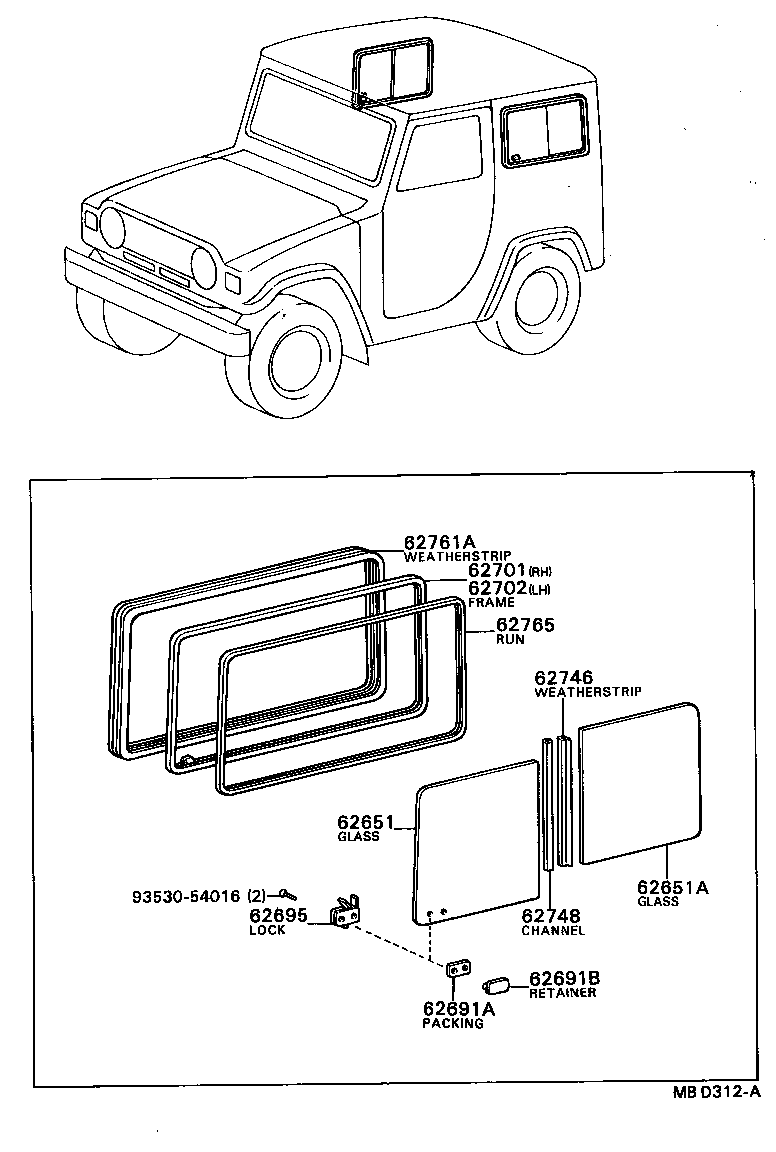

diagram 62651 62651A 62691A 62691B 62695 62701 62702 62746 62748 62761A 62765 9353054016
Part # Description Qty Price
62651 - GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
62713-87603

LD10

*TEM,T=4.0

 2
62651A - GLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
62714-87603

LD10

*TEM,T=4.0

 2
62691A - PACKING, SIDE WINDOW LOCK, NO.1
62782-87502

LD10

 2
62691B - RETAINER, SIDE WINDOW LOCK, NO.1
62781-87502

LD10

 2
62695 - LOCK, SIDE WINDOW, NO.5 GLASS (FOR SLIDE TYPE)
62790-87501

LD10

RH

 1
62780-87501

LD10

LH

 1
62701 - FRAME SUB-ASSY, REAR SIDE WINDOW, RH
62701-87602

LD10

 1
62702 - FRAME SUB-ASSY, REAR SIDE WINDOW, LH
62702-87602

LD10

 1
62746 - WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1
62746-87502

LD10

 2
62748 - CHANNEL, SIDE WINDOW GLASS
62747-87501

LD10

 2
62761A - WEATHERSTRIP, SIDE WINDOW, NO.1(FOR SLIDE TYPE)
62753-87602

LD10

RH

 1
62754-87602

LD10

LH

 1
62765 - RUN, SIDE WINDOW, NO.5(FOR SLIDE TYPE)
62762-87602

LD10

 2
Common parts
93530-54016
