LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

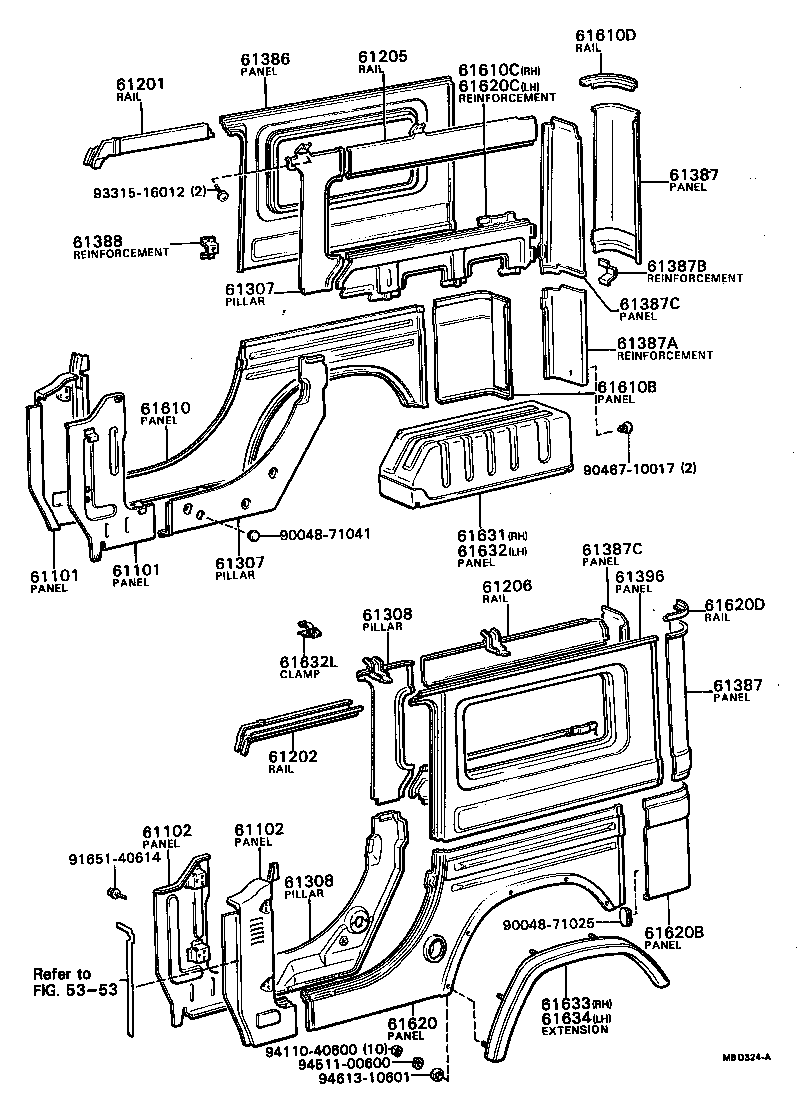

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 55706-87606 |
LD10 OUTER |
1 | ||
| 55703-87605 |
LD10 INNER |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 55706-87606 |
LD10 OUTER |
1 | ||
| 55703-87605 |
LD10 INNER |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 55704-87605 |
LD10 INNER |
1 | ||
| 55707-87606 |
LD10 OUTER |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 55704-87605 |
LD10 INNER |
1 | ||
| 55707-87606 |
LD10 OUTER |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-87603 |
LD10 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-87603 |
LD10 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61206-87602 |
LD10 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61207-87602 |
LD10 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-87611 |
LD10 LWR |
1 | ||
| 61305-87605 |
LD10 UPR |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-87611 |
LD10 LWR |
1 | ||
| 61305-87605 |
LD10 UPR |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-87610 |
LD10 LWR |
1 | ||
| 61306-87605 |
LD10 UPR |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-87610 |
LD10 LWR |
1 | ||
| 61306-87605 |
LD10 UPR |
1 | ||
| 61386 - PANEL, REAR SIDE, UPPER RH | ||||
| 61386-87603 |
LD10 |
1 | ||
| 61387 - PANEL, REAR BODY CORNER, UPPER | ||||
| 61397-87601 |
LD10 LH |
1 | ||
| 61387-87601 |
LD10 RH |
1 | ||
| 61387 - PANEL, REAR BODY CORNER, UPPER | ||||
| 61397-87601 |
LD10 LH |
1 | ||
| 61387-87601 |
LD10 RH |
1 | ||
| 61387A - REINFORCEMENT SUB-ASSY, REAR BODY CORNER | ||||
| 58305-87601 |
LD10 RH |
1 | ||
| 58322-87602 |
LD10 LH |
1 | ||
| 61387B - REINFORCEMENT, SWING GATE HINGE | ||||
| 61351-87602 |
LD10 |
2 | ||
| 61387C - PANEL, REAR PILLAR INNER, UPPER | ||||
| 61736-87601 |
LD10 LH |
1 | ||
| 61735-87601 |
LD10 RH |
1 | ||
| 61387C - PANEL, REAR PILLAR INNER, UPPER | ||||
| 61736-87601 |
LD10 LH |
1 | ||
| 61735-87601 |
LD10 RH |
1 | ||
| 61388 - REINFORCEMENT, SEAT BELT ANCHORAGE | ||||
| 61388-87601 |
LD10 |
2 | ||
| 61396 - PANEL, REAR SIDE, UPPER LH | ||||
| 61396-87603 |
LD10 |
1 | ||
| 61610 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 61071-87604 |
LD10 |
1 | ||
| 61610B - PANEL SUB-ASSY, REAR BODY CORNER, RH | ||||
| 58301-87605 |
LD10 |
1 | ||
| 61610C - REINFORCEMENT SUB-ASSY, REAR SIDE, LOWER RH | ||||
| 61204-87604 |
LD10 |
1 | ||
| 61610D - RAIL, REAR CORNER PANEL, UPPER RH | ||||
| 61332-87601 |
LD10 |
1 | ||
| 61620 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 61072-87604 |
LD10 |
1 | ||
| 61620B - PANEL SUB-ASSY, REAR BODY CORNER, LH | ||||
| 58302-87604 |
LD10 |
1 | ||
| 61620C - REINFORCEMENT SUB-ASSY, REAR SIDE, LOWER LH | ||||
| 61205-87603 |
LD10 |
1 | ||
| 61620D - RAIL, REAR CORNER PANEL, UPPER LH | ||||
| 61333-87601 |
LD10 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 58203-87608 |
LD10 |
1 | ||
| 58203-87612 |
LD10 |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 58204-87608 |
LD10 |
1 | ||
| 58204-87605 |
LD10 |
1 | ||
| 61632L - CLAMP, JACK HANDLE | ||||
| 74715-87602 |
LD10 |
2 | ||
| 61633 - EXTENSION, WHEEL HOUSE, RH | ||||
| 61681-87601 |
LD10 |
1 | ||
| 61634 - EXTENSION, WHEEL HOUSE, LH | ||||
| 61682-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90048-71025 | ||||
| 90048-71041 | ||||
| 90467-10017 | ||||
| 91651-40614 | ||||
| 93315-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5353 | ||||
