LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

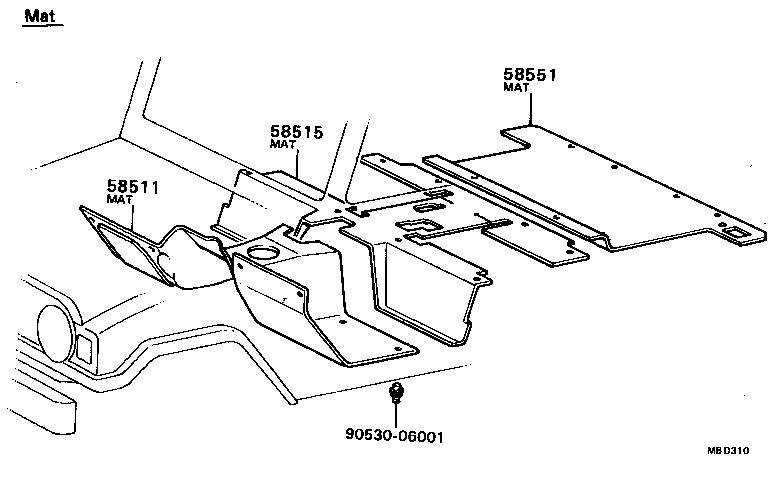

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58511 - MAT, FLOOR, FRONT | ||||
| 58510-87616 |
LD10 |
1 | ||
| 58510-87612 |
LD10 |
1 | ||
| 58515 - MAT, FLOOR, CENTER | ||||
| 58513-87609 |
LD10 |
1 | ||
| 58513-87605 |
LD10 |
1 | ||
| 58551 - MAT, FLOOR, REAR | ||||
| 58514-87605 |
LD10 |
1 | ||
| 58514-87610 |
LD10 |
1 | ||
| 58514-87616 |
LD10 W/RR SEAT |
1 | ||
| Common parts | ||||
| 90530-06001 | ||||

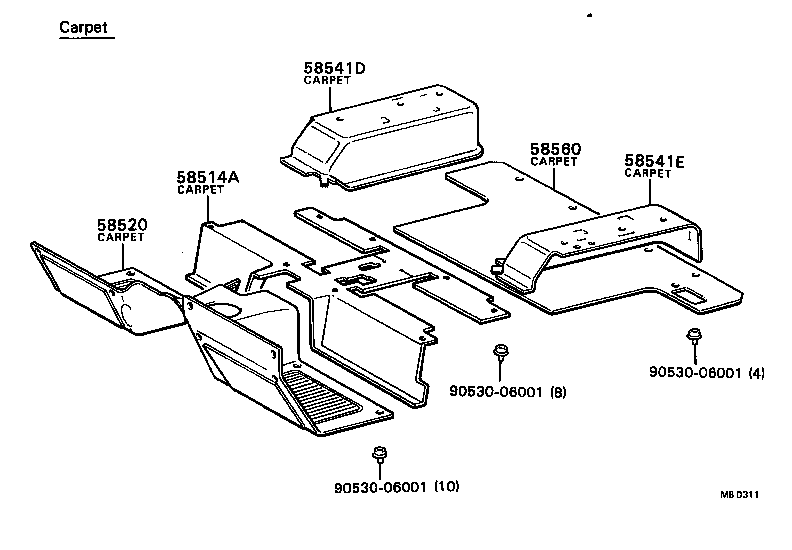

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58514A - CARPET, FLOOR, CENTER | ||||
| 58513-87610 |
LD10 |
1 | ||
| 58513-87606 |
LD10 |
1 | ||
| 58520 - CARPET ASSY, FRONT FLOOR | ||||
| 58511-87610 |
LD10 |
1 | ||
| 58511-87614 |
LD10 |
1 | ||
| 58541D - CARPET, REAR WHEEL HOUSE, RH | ||||
| 58543-87604 |
LD10 |
1 | ||
| 58543-87610 |
LD10 |
1 | ||
| 58543-87615 |
LD10 W/RR SEAT |
1 | ||
| 58541E - CARPET, REAR WHEEL HOUSE, LH | ||||
| 58544-87615 |
LD10 W/RR SEAT |
1 | ||
| 58544-87604 |
LD10 |
1 | ||
| 58544-87610 |
LD10 |
1 | ||
| 58560 - CARPET ASSY, FLOOR, REAR | ||||
| 58514-87611 |
LD10 |
1 | ||
| 58514-87615 |
LD10 W/RR SEAT |
1 | ||
| 58514-87606 |
LD10 |
1 | ||
| Common parts | ||||
| 90530-06001 | ||||
