LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

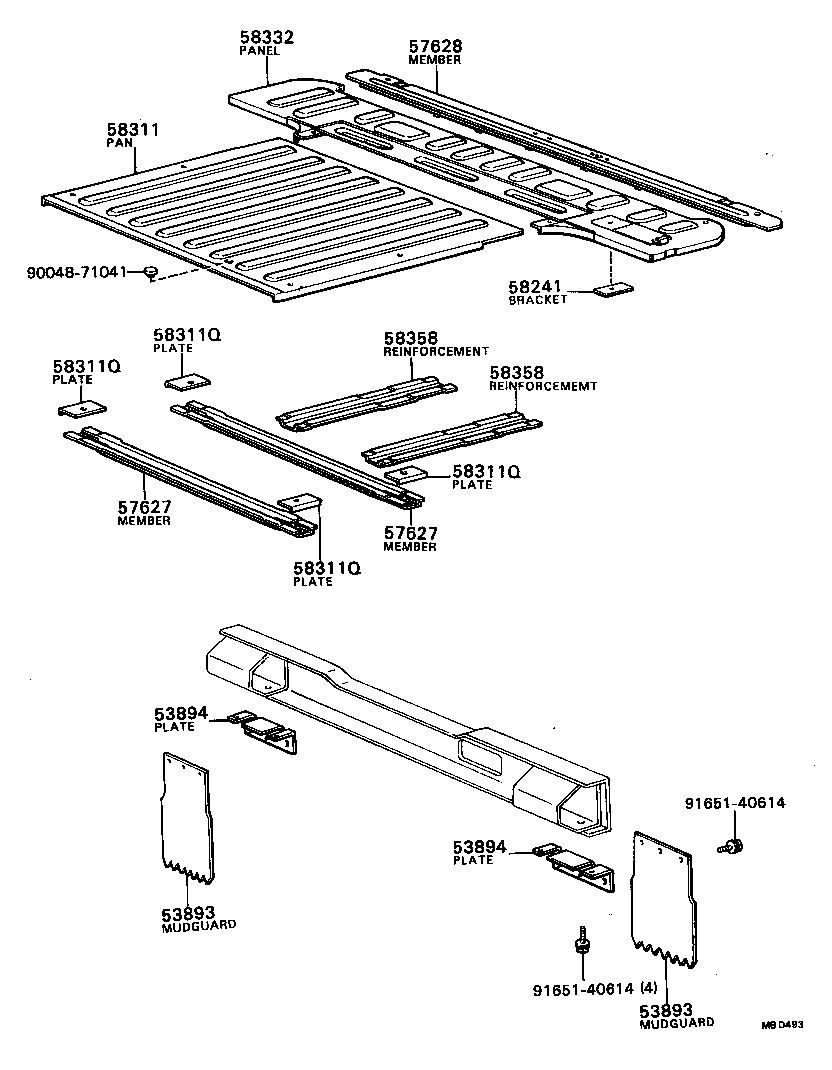

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53893 - MUDGUARD, REAR | ||||
| 66241-87609 |
LD10 |
2 | ||
| 66241-87604 |
LD10 |
2 | ||
| 53893 - MUDGUARD, REAR | ||||
| 66241-87609 |
LD10 |
2 | ||
| 66241-87604 |
LD10 |
2 | ||
| 53894 - PLATE, REAR MUDGUARD SET RETAINER | ||||
| 66221-87602 |
LD10 |
2 | ||
| 53894 - PLATE, REAR MUDGUARD SET RETAINER | ||||
| 66221-87602 |
LD10 |
2 | ||
| 57627 - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58260-87603 |
LD10 |
2 | ||
| 57627 - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58260-87603 |
LD10 |
2 | ||
| 57628 - MEMBER, REAR FLOOR CROSS, REAR | ||||
| 57609-87605 |
LD10 |
1 | ||
| 58241 - BRACKET, JACK | ||||
| 58367-87502 |
LD10 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58211-87602 |
LD10 |
1 | ||
| 58311Q - PLATE, REAR FLOOR CROSSMEMBER, SIDE | ||||
| 58346-87603 |
LD10 |
4 | ||
| 58311Q - PLATE, REAR FLOOR CROSSMEMBER, SIDE | ||||
| 58346-87603 |
LD10 |
4 | ||
| 58311Q - PLATE, REAR FLOOR CROSSMEMBER, SIDE | ||||
| 58346-87603 |
LD10 |
4 | ||
| 58311Q - PLATE, REAR FLOOR CROSSMEMBER, SIDE | ||||
| 58346-87603 |
LD10 |
4 | ||
| 58332 - PANEL, REAR FLOOR, REAR | ||||
| 58209-87610 |
LD10 |
1 | ||
| 58358 - REINFORCEMENT, REAR FLOOR, REAR | ||||
| 58231-87602 |
LD10 |
2 | ||
| 58358 - REINFORCEMENT, REAR FLOOR, REAR | ||||
| 58231-87602 |
LD10 |
2 | ||
| Common parts | ||||
| 90048-71041 | ||||
| 91651-40614 | ||||
