LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

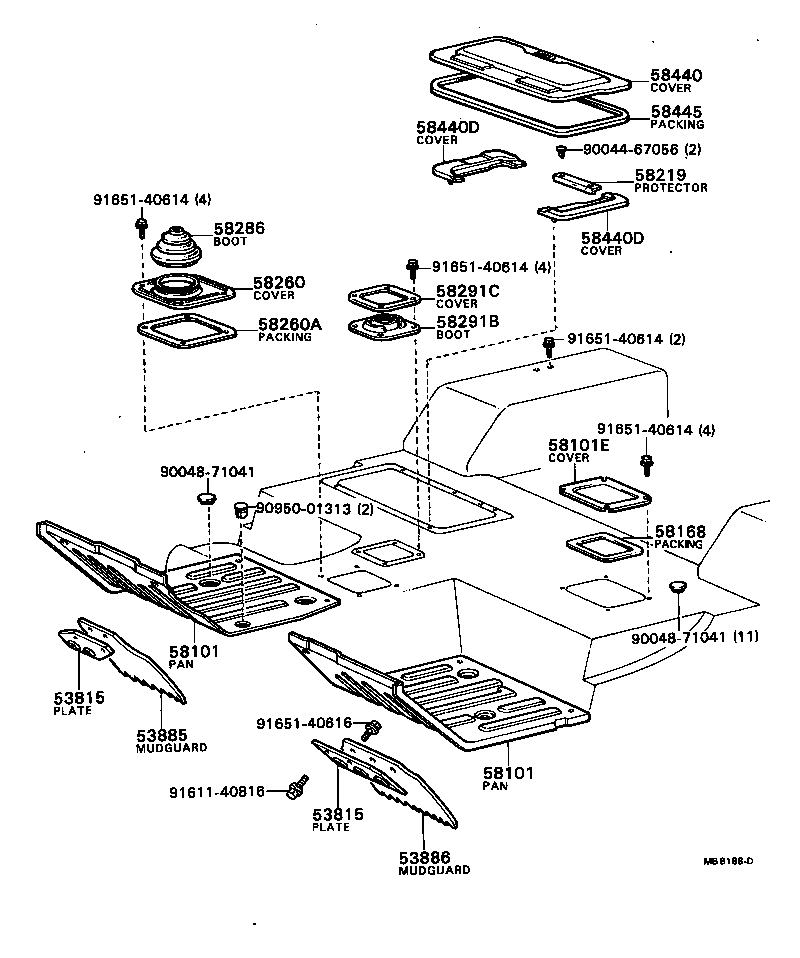

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53815 - PLATE, MUDGUARD RUBBER SET, FRONT | ||||
| 76651-87602 |
LD10 RH |
1 | ||
| 76652-87601 |
LD10 LH |
1 | ||
| 53815 - PLATE, MUDGUARD RUBBER SET, FRONT | ||||
| 76651-87602 |
LD10 RH |
1 | ||
| 76652-87601 |
LD10 LH |
1 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 66241-87608 |
LD10 |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 66241-87605 |
LD10 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58113-87603 |
LD10 LH |
1 | ||
| 58112-87605 |
LD10 RH |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58113-87603 |
LD10 LH |
1 | ||
| 58112-87605 |
LD10 RH |
1 | ||
| 58101E - COVER, FUEL TANK SERVICE HOLE | ||||
| 58142-87602 |
LD10 |
1 | ||
| 58142-87601 |
LD10 |
1 | ||
| 58168 - PACKING, FUEL TANK SERVICE HOLE COVER | ||||
| 58168-87601 |
LD10 |
1 | ||
| 58219 - PROTECTOR, FRONT FLOOR | ||||
| 55188-87601 |
LD10 W/BATTERY HOLE |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58262-87603 |
LD10 |
1 | ||
| 58260A - PACKING, FRONT TRANSMISSION SERVICE HOLE COVER | ||||
| 58268-87602 |
LD10 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-87601 |
LD10 |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58291-87602 |
LD10 |
1 | ||
| 58291-87601 |
LD10 |
1 | ||
| 58291C - COVER, TRANSFER SHIFT LEVER BOOT | ||||
| 58292-87601 |
LD10 |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 55108-87602 |
LD10 |
1 | ||
| 58440D - COVER, BATTERY HOLE, NO.2 | ||||
| 55186-87601 |
LD10 LH |
1 | ||
| 55185-87601 |
LD10 RH |
1 | ||
| 58440D - COVER, BATTERY HOLE, NO.2 | ||||
| 55186-87601 |
LD10 LH |
1 | ||
| 55185-87601 |
LD10 RH |
1 | ||
| 58445 - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 55178-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90044-67056 | ||||
| 90048-71041 | ||||
| 90950-01313 | ||||
| 91611-40816 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
