LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

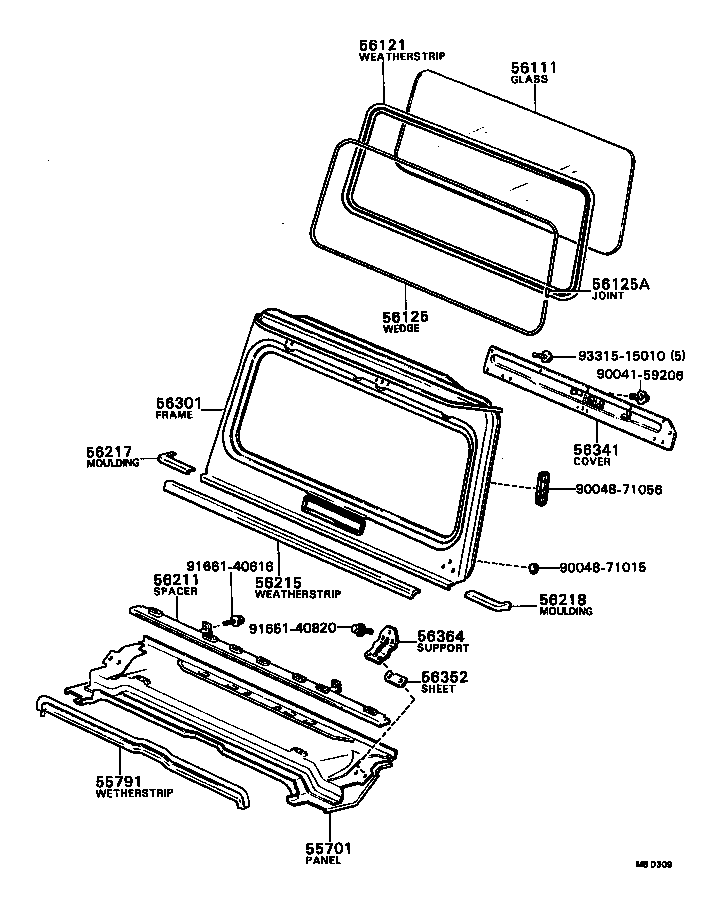

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55701-87609 |
LD10 |
1 | ||
| 55791 - WEATHERSTRIP, HOOD TO COWL TOP | ||||
| 55791-87603 |
LD10 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-87602 |
LD10 *LAM,T=6.7 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-87601 |
LD10 |
1 | ||
| 56125 - WEDGE, WINDSHIELD WEATHERSTRIP | ||||
| 56125-87602 |
LD10 |
1 | ||
| 56125A - JOINT(FOR WINDSHIELD WEDGE) | ||||
| 75578-87201 |
LD10 |
1 | ||
| 56211 - SPACER, WINDSHIELD | ||||
| 56201-87601 |
LD10 |
1 | ||
| 56215 - WEATHERSTRIP, TO SPACER WINDSHIELD | ||||
| 56215-87603 |
LD10 |
1 | ||
| 56217 - MOULDING WINDSHIELD SPACER,RH | ||||
| 56151-87601 |
LD10 |
1 | ||
| 56218 - MOULDING WINDSHIELD SPACER,LH | ||||
| 56152-87601 |
LD10 |
1 | ||
| 56301 - FRAME SUB-ASSY, WINDSHIELD | ||||
| 56301-87645 |
LD10 |
1 | ||
| 56341 - COVER, WINDSHIELD WIPER HOLE | ||||
| 56341-87603 |
LD10 |
1 | ||
| 56352 - SHEET, WINDSHIELD HINGE, MALE | ||||
| 56352-87601 |
LD10 |
2 | ||
| 56364 - SUPPORT, WINDSHIELD | ||||
| 56364-87601 |
LD10 |
2 | ||
| Common parts | ||||
| 90041-59206 | ||||
| 90048-71015 | ||||
| 90048-71056 | ||||
| 91651-40820 | ||||
| 91661-40616 | ||||
| 93315-15010 | ||||
