LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

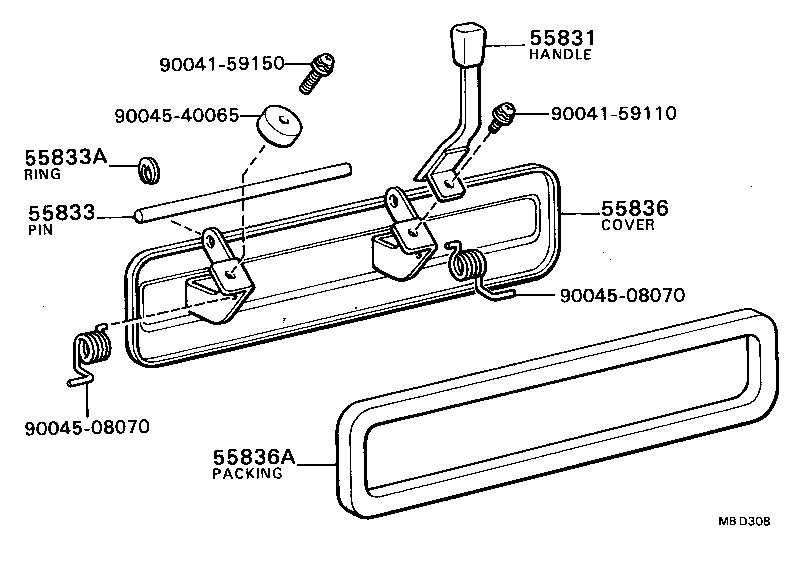

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55831 - HANDLE OR LEVER, VENTILATOR SHUTTER | ||||
| 55805-87601 |
LD10 |
1 | ||
| 55833 - PIN, FRONT VENTILATOR SUPPORT | ||||
| 90042-49054 |
LD10 |
1 | ||
| 55833A - RING, RETAINING(FOR FRONT VENTILATOR SUPPORT PIN) | ||||
| 96160-00600 |
LD10 |
2 | ||
| 55836 - COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER | ||||
| 55801-87602 |
LD10 |
1 | ||
| 55836A - PACKING, FRONT VENTILATOR COVER | ||||
| 55815-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-59110 | ||||
| 90041-59150 | ||||
| 90045-08070 | ||||
| 90045-40065 | ||||
