LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

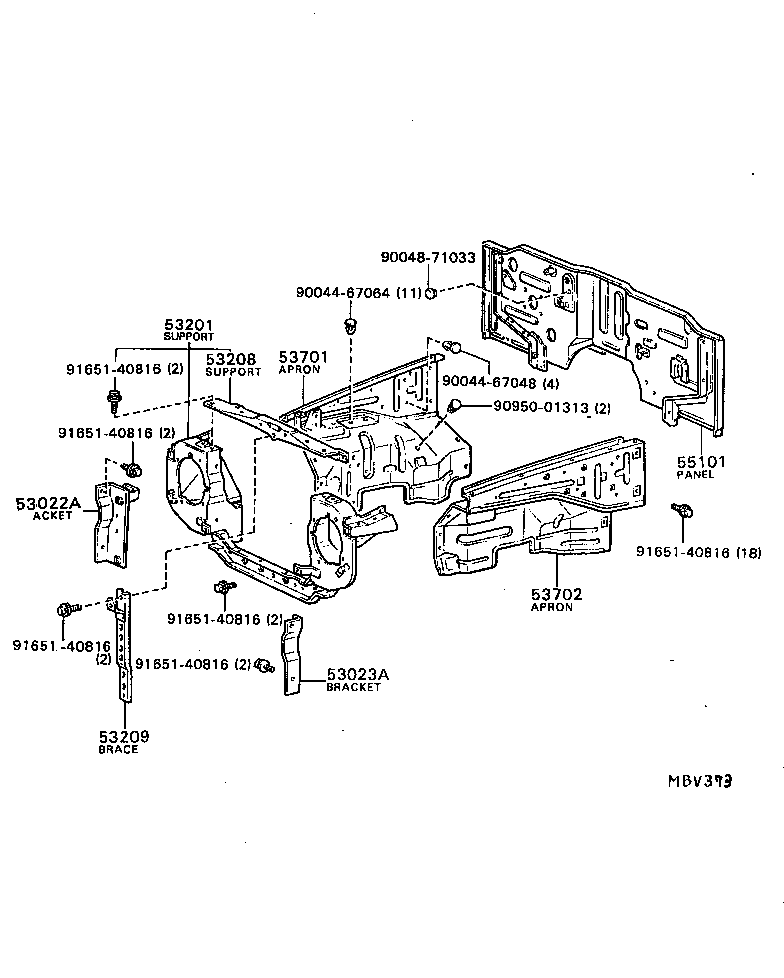

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53022A - BRACKET SUB-ASSY,RADIATOR GRILLE SUPPORT, RH | ||||
| 51406-87601 |
LD10 |
1 | ||
| 53023A - BRACKET SUB-ASSY, RADIATOR GRILLE SUPPORT, LH | ||||
| 51412-87605 |
LD10 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53200-87604 |
LD10 |
1 | ||
| 53203-87612 |
LD10 |
1 | ||
| 53200-87603 |
LD10 |
1 | ||
| 53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER | ||||
| 53250-87601 |
LD10 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53209-87601 |
LD10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-87604 |
LD10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-87611 |
LD10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-87623 |
LD10 |
1 | ||
| 55101-87617 |
LD10 |
1 | ||
| 55101-87622 |
LD10 |
1 | ||
| Common parts | ||||
| 90044-67048 | ||||
| 90044-67064 | ||||
| 90048-71033 | ||||
| 90950-01313 | ||||
| 91651-40816 | ||||
