LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

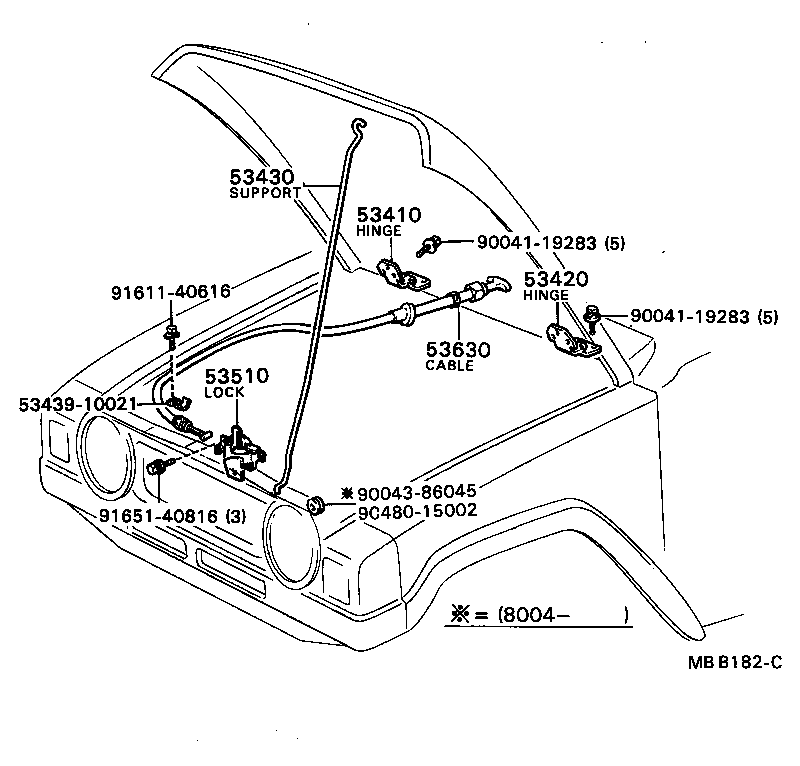

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-87603 |
LD10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-87602 |
LD10 |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53431-87604 |
LD10 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-87703 |
LD10 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-87602 |
LD10 |
1 | ||
| Common parts | ||||
| 53439-10021 | ||||
| 90041-19283 | ||||
| 90043-86045 | ||||
| 90480-15002 | ||||
| 91611-40616 | ||||
| 91651-40816 | ||||
