LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

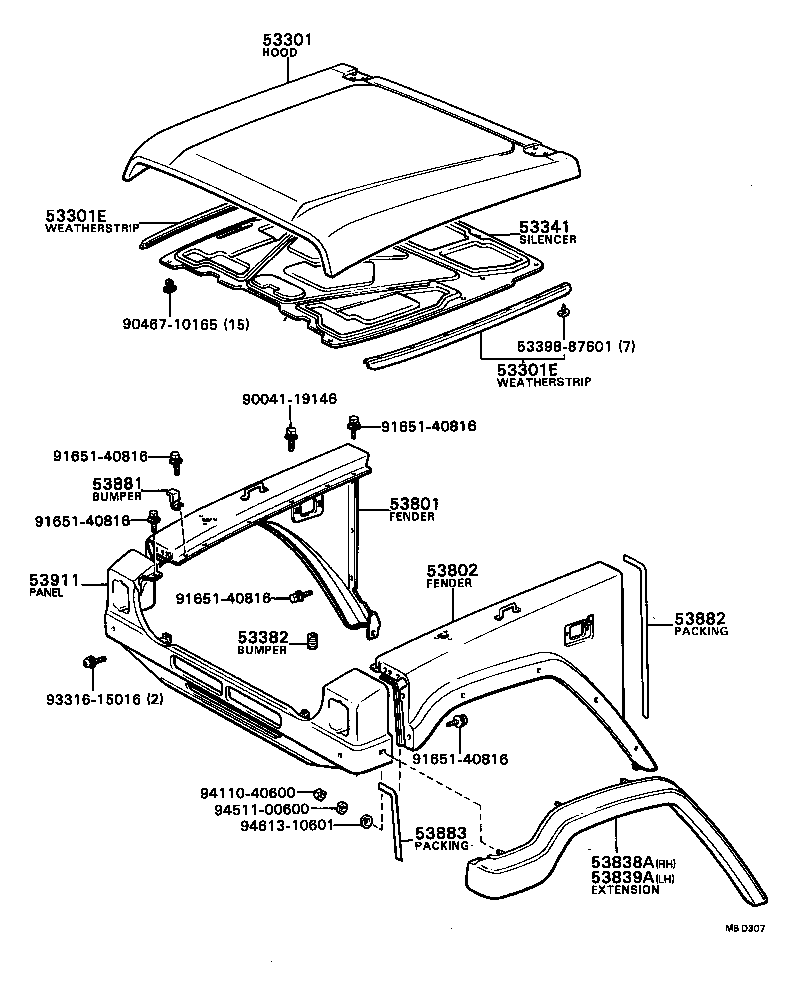

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-87606 |
LD10 |
1 | ||
| 53301E - WEATHERSTRIP, HOOD INNER | ||||
| 53395-87601 |
LD10 RH |
1 | ||
| 53396-87601 |
LD10 LH |
1 | ||
| 53301E - WEATHERSTRIP, HOOD INNER | ||||
| 53395-87601 |
LD10 RH |
1 | ||
| 53396-87601 |
LD10 LH |
1 | ||
| 53341 - SILENCER, HOOD, NO.1 | ||||
| 53341-87601 |
LD10 |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53381-87701 |
LD10 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-87616 |
LD10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-87616 |
LD10 |
1 | ||
| 53838A - EXTENSHION, FRONT FENDER, RH | ||||
| 53847-87601 |
LD10 |
1 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53382-87601 |
LD10 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-87601 |
LD10 |
2 | ||
| 53883 - PACKING, FRONT FENDER, FRONT | ||||
| 53883-87601 |
LD10 |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-87602 |
LD10 |
1 | ||
| Common parts | ||||
| 53398-87601 | ||||
| 90041-19146 | ||||
| 90467-10165 | ||||
| 91651-40816 | ||||
| 93316-15016 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94613-10601 | ||||
