LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

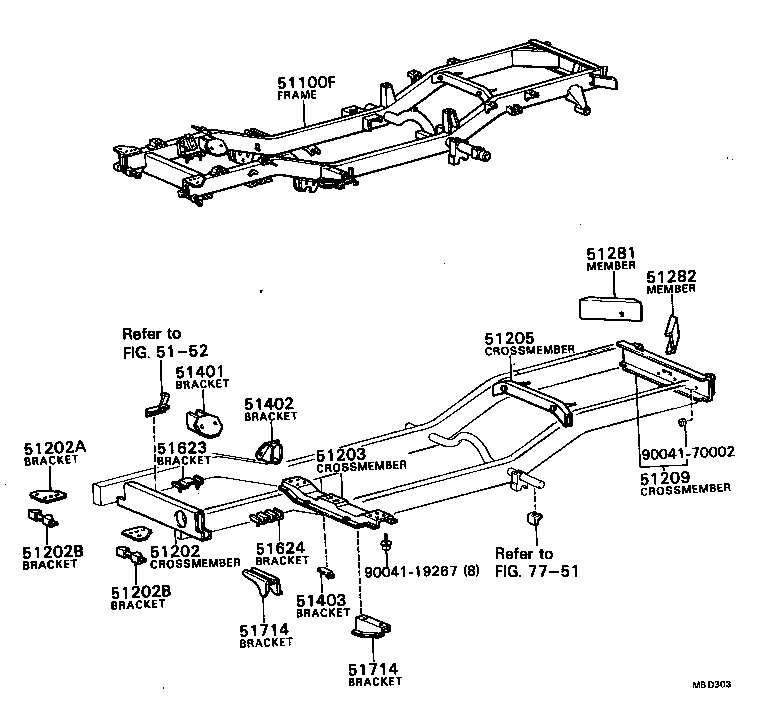

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51002-87640 |
LD10 |
1 | ||
| 51002-87638 |
LD10 |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51211-87602 |
LD10 |
1 | ||
| 51202A - BRACKET, FRONT BUMPER, UPPER | ||||
| 52114-87601 |
LD10 RH |
1 | ||
| 52115-87601 |
LD10 LH |
1 | ||
| 51202B - BRACKET, FRONT BUMPER, LOWER | ||||
| 52118-87602 |
LD10 LH |
1 | ||
| 52117-87602 |
LD10 RH |
1 | ||
| 51202B - BRACKET, FRONT BUMPER, LOWER | ||||
| 52118-87602 |
LD10 LH |
1 | ||
| 52117-87602 |
LD10 RH |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-87602 |
LD10 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-87602 |
LD10 |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-87603 |
LD10 |
1 | ||
| 51281 - MEMBER, REAR DIAGONAL, RH | ||||
| 51281-87601 |
LD10 |
1 | ||
| 51282 - MEMBER, REAR DIAGONAL, LH | ||||
| 51282-87601 |
LD10 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-87604 |
LD10 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-87604 |
LD10 |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51431-87601 |
LD10 |
1 | ||
| 51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH | ||||
| 51611-87602 |
LD10 |
1 | ||
| 51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH | ||||
| 51612-87601 |
LD10 |
1 | ||
| 51714 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51716-87602 |
LD10 LH |
1 | ||
| 51715-87603 |
LD10 RH |
1 | ||
| 51714 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51716-87602 |
LD10 LH |
1 | ||
| 51715-87603 |
LD10 RH |
1 | ||
| Common parts | ||||
| 90041-19267 | ||||
| 90041-70002 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 7751 | ||||
