LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

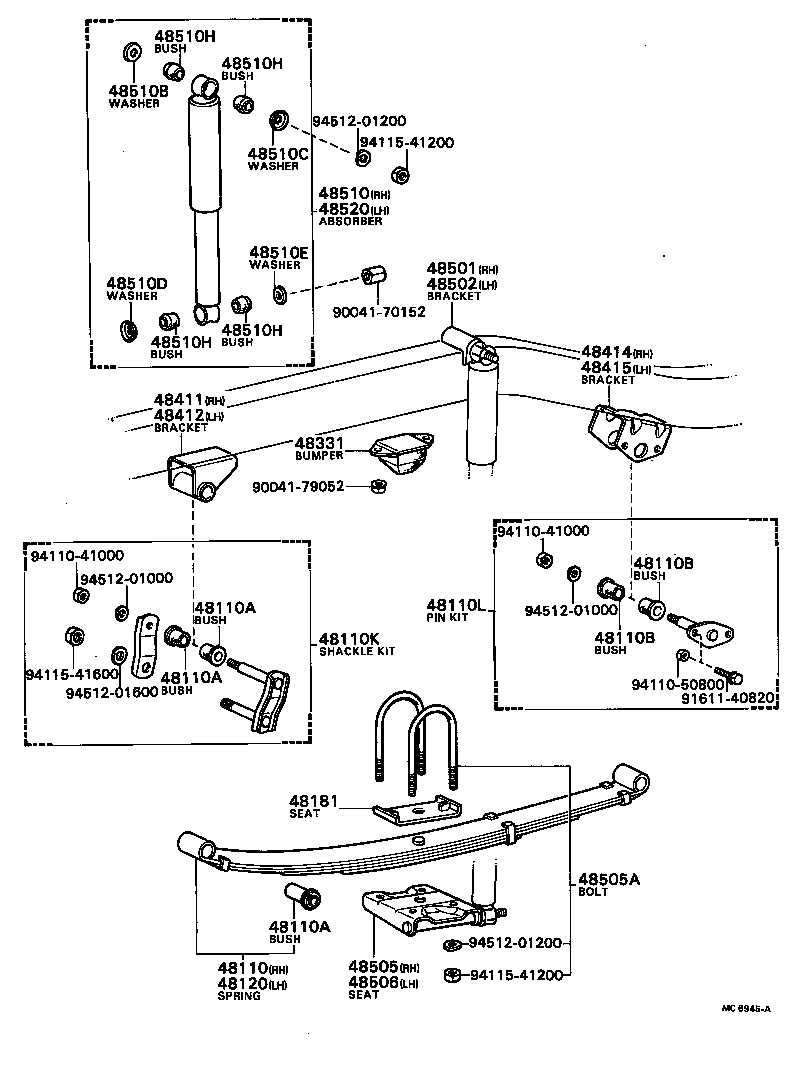

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-87624 |
LD10 |
1 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90043-85059 |
LD10 L=44.2 |
4 | ||
| 90043-85053 |
LD10 L=63 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90043-85059 |
LD10 L=44.2 |
4 | ||
| 90043-85053 |
LD10 L=63 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90043-85059 |
LD10 L=44.2 |
4 | ||
| 90043-85053 |
LD10 L=63 |
2 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90043-85040 |
LD10 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90043-85040 |
LD10 |
4 | ||
| 48110K - SHACKLE KIT, FRONT SPRING | ||||
| 04481-87601 |
LD10 |
2 | ||
| 48110L - PIN KIT, FRONT SPRING | ||||
| 04482-87601 |
LD10 |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-87625 |
LD10 |
1 | ||
| 48181 - SEAT, FRONT LEAF SPRING(FOR UPPER SIDE) | ||||
| 48181-87601 |
LD10 |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-87602 |
LD10 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48401-87602 |
LD10 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48401-87602 |
LD10 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48413-87603 |
LD10 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48413-87603 |
LD10 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-87605 |
LD10 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-87605 |
LD10 |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48044-87604 |
LD10 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-87008 |
LD10 L=143,RH INSIDE |
1 | ||
| 90118-87006 |
LD10 L=136.5,RH OUTSIDE & LH |
3 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48045-87604 |
LD10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-87603 |
LD10 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03004 |
LD10 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03003 |
LD10 |
2 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
LD10 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03003 |
LD10 |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90043-85002 |
LD10 |
8 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90043-85002 |
LD10 |
8 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90043-85002 |
LD10 |
8 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90043-85002 |
LD10 |
8 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-87603 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-70152 | ||||
| 90041-79052 | ||||
| 91611-40820 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01600 | ||||
