LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

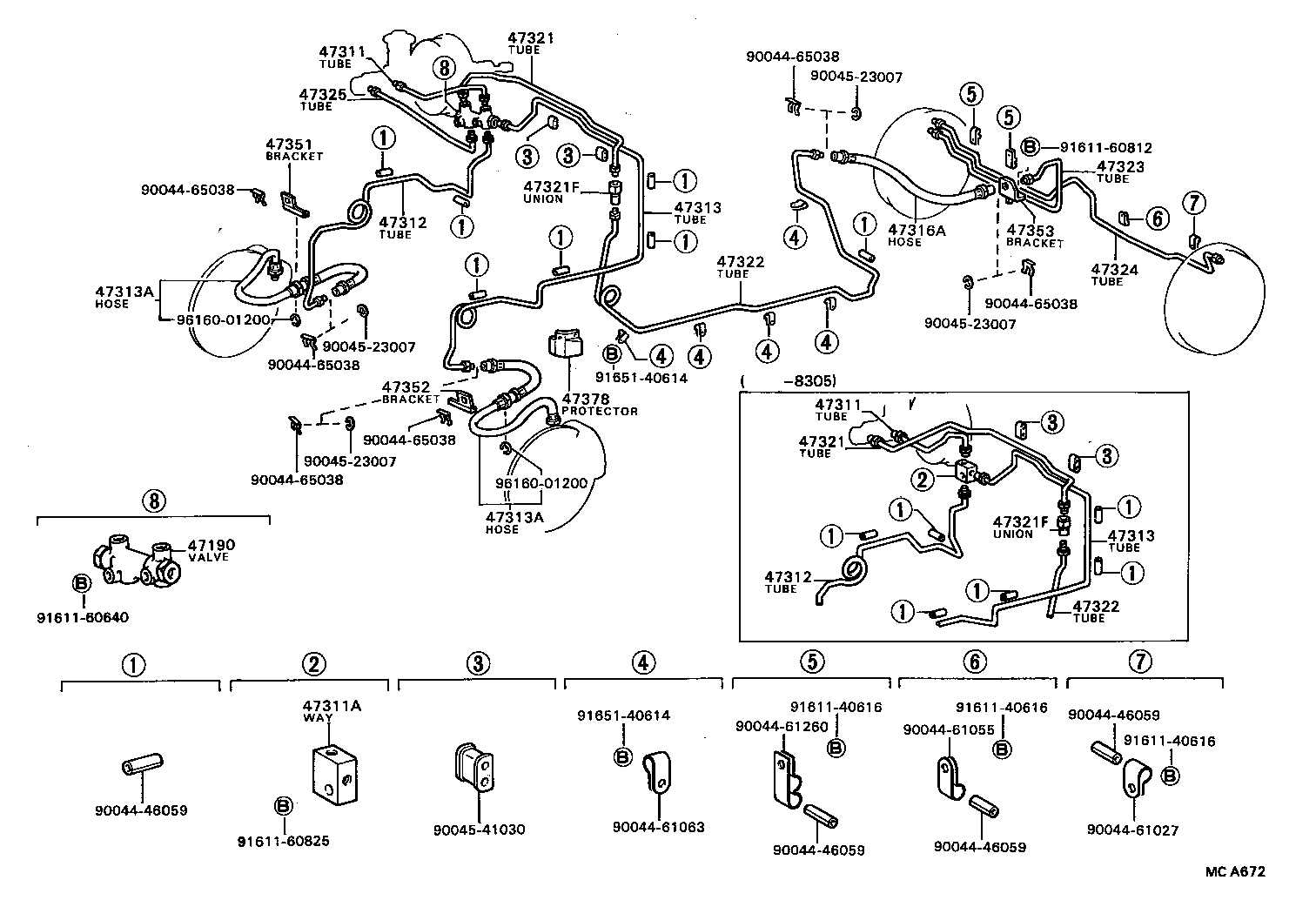

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-87602 |
LD10 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-87612 |
LD10 |
1 | ||
| 47311-87615 |
LD10 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-87612 |
LD10 |
1 | ||
| 47311-87615 |
LD10 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90044-13022 |
LD10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-87615 |
LD10 |
1 | ||
| 47313-87612 |
LD10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-87615 |
LD10 |
1 | ||
| 47313-87612 |
LD10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-87617 |
LD10 |
1 | ||
| 47314-87618 |
LD10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-87617 |
LD10 |
1 | ||
| 47314-87618 |
LD10 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22072 |
LD10 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22072 |
LD10 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22073 |
LD10 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-87608 |
LD10 |
1 | ||
| 47312-87609 |
LD10 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-87608 |
LD10 |
1 | ||
| 47312-87609 |
LD10 |
1 | ||
| 47321F - UNION(FOR REAR BRAKE TUBE) | ||||
| 90044-04004 |
LD10 |
1 | ||
| 47321F - UNION(FOR REAR BRAKE TUBE) | ||||
| 90044-04004 |
LD10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47315-87615 |
LD10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47315-87615 |
LD10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47321-87601 |
LD10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47322-87601 |
LD10 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47339-87601 |
LD10 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47354-87601 |
LD10 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47355-87603 |
LD10 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47356-87601 |
LD10 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47341-87604 |
LD10 RH |
1 | ||
| 47342-87602 |
LD10 LH |
1 | ||
| Common parts | ||||
| 90044-46059 | ||||
| 90044-61027 | ||||
| 90044-61055 | ||||
| 90044-61063 | ||||
| 90044-61260 | ||||
| 90044-65038 | ||||
| 90045-23007 | ||||
| 90045-41030 | ||||
| 91611-40616 | ||||
| 91611-60640 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91651-40614 | ||||
| 96160-01200 | ||||
