LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

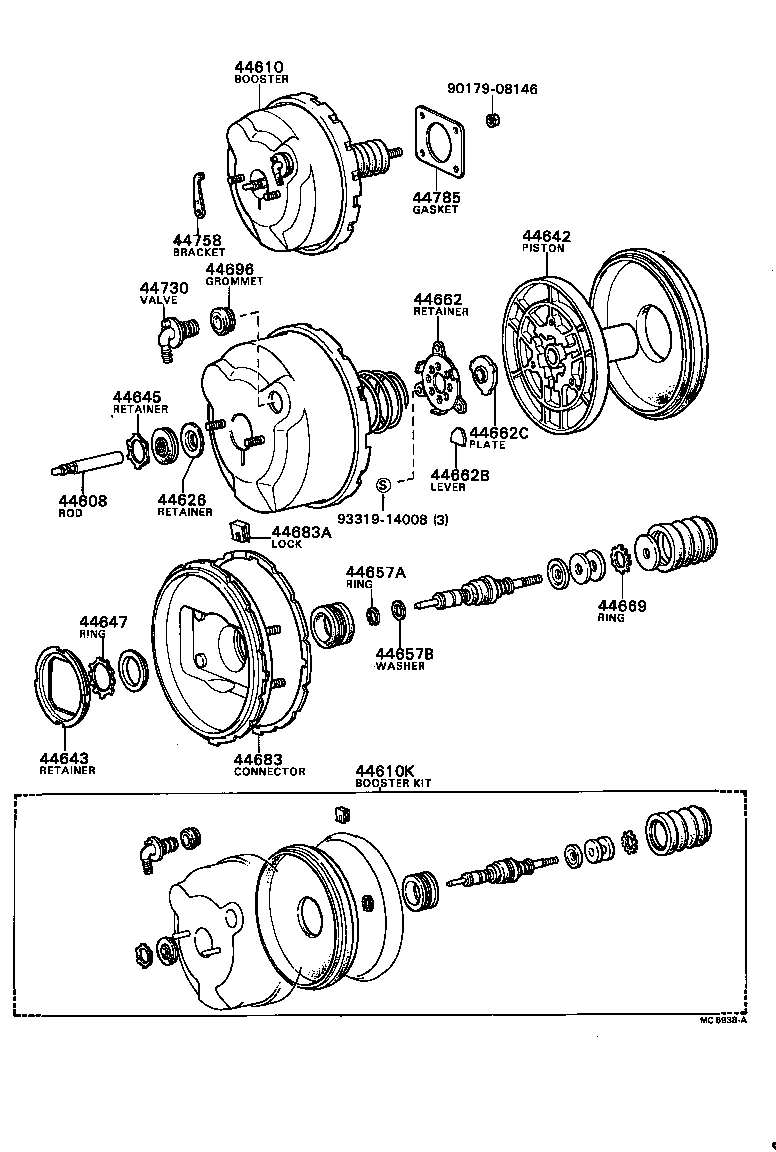

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-87607 |
LD10 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-87622 |
LD10 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-87606 |
LD10 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
LD10 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
LD10 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
LD10 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
LD10 |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
LD10 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
LD10 |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
LD10 |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
LD10 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
LD10 |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-27050 |
LD10 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
LD10 |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
LD10 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
LD10 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
LD10 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-87601 |
LD10 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-87605 |
LD10 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 90044-31022 |
LD10 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||

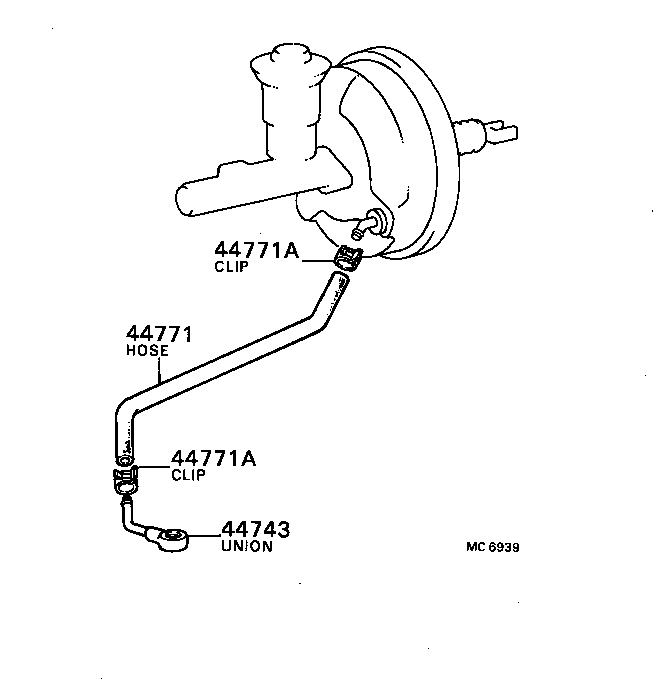

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-11001 |
LD10 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-87605 |
LD10 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LD10 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LD10 |
2 | ||
