LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

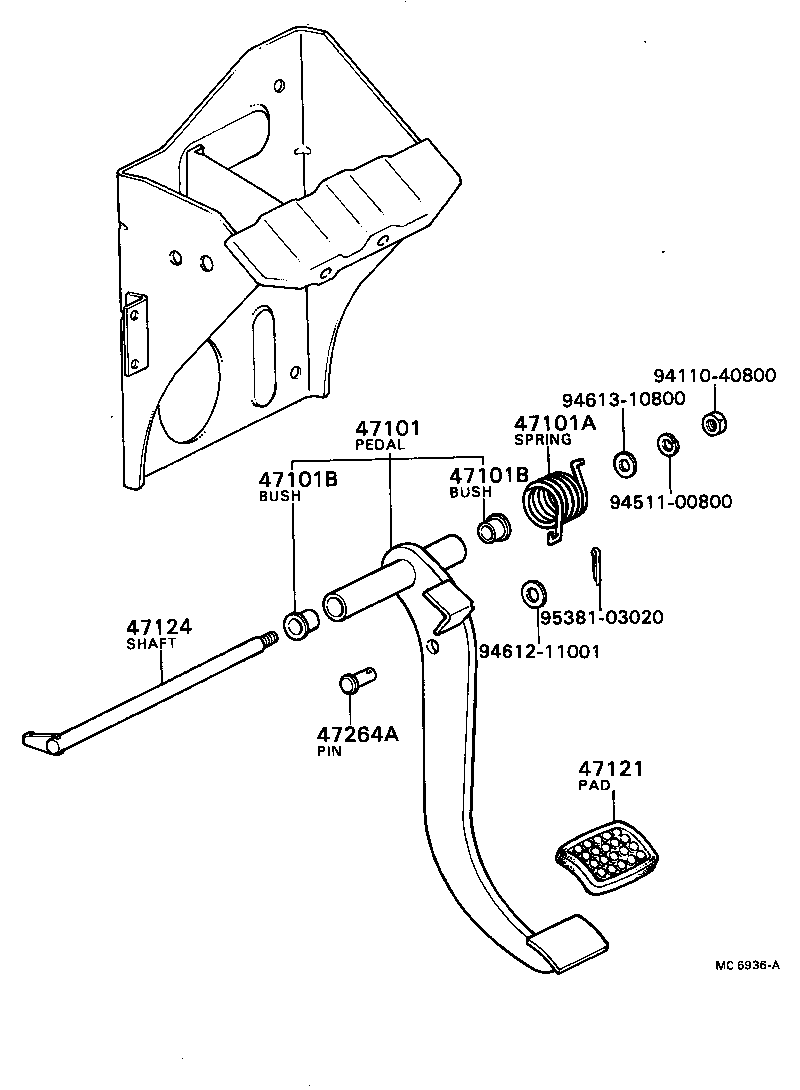

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-87606 |
LD10 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90045-08128 |
LD10 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90043-81005 |
LD10 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90043-81005 |
LD10 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-87601 |
LD10 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-87603 |
LD10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90042-40068 |
LD10 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 95381-03020 | ||||
