LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

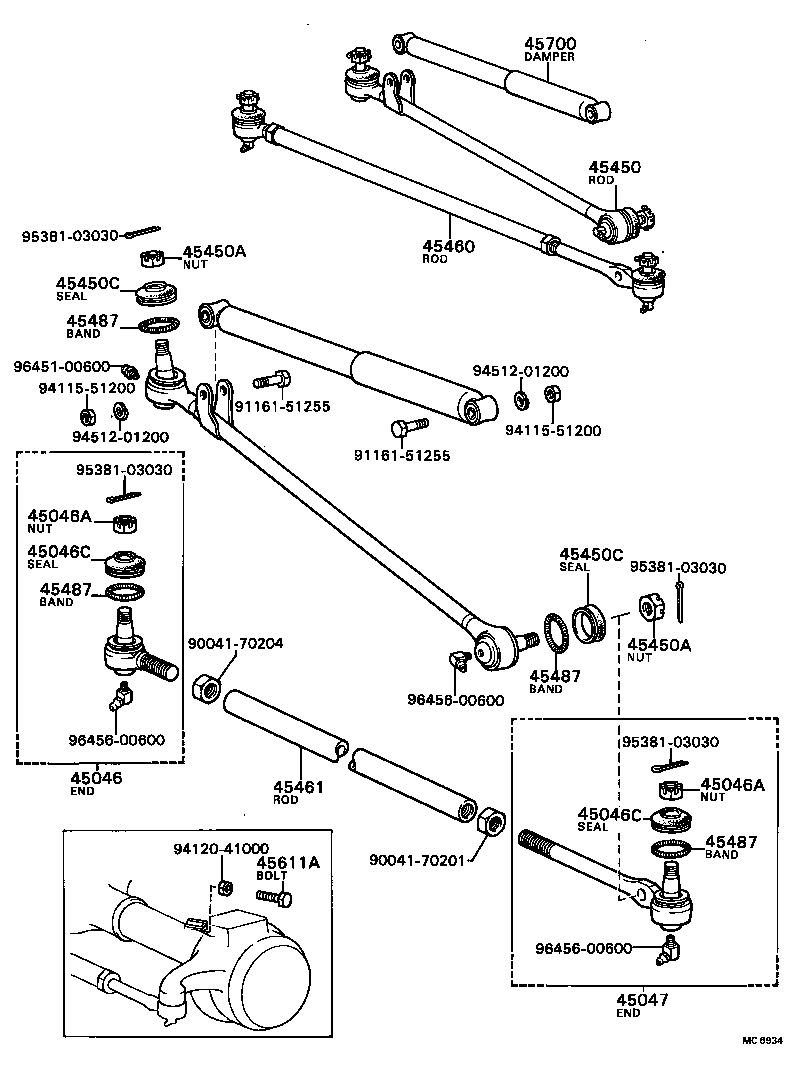

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-87680 |
LD10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90041-71031 |
LD10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90041-71031 |
LD10 |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-87601 |
LD10 |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-87601 |
LD10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-87680 |
LD10 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-87680 |
LD10 |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90041-71031 |
LD10 |
2 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90041-71031 |
LD10 |
2 | ||
| 45450C - SEAL, DUST(FOR RELAY ROD) | ||||
| 45479-87601 |
LD10 |
2 | ||
| 45450C - SEAL, DUST(FOR RELAY ROD) | ||||
| 45479-87601 |
LD10 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-87680 |
LD10 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-87602 |
LD10 |
1 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD10 |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD10 |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD10 |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD10 |
4 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90041-06002 |
LD10 |
2 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-87604 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-70201 | ||||
| 90041-70204 | ||||
| 91161-51255 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94512-01200 | ||||
| 95381-03030 | ||||
| 96451-00600 | ||||
| 96456-00600 | ||||
