LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

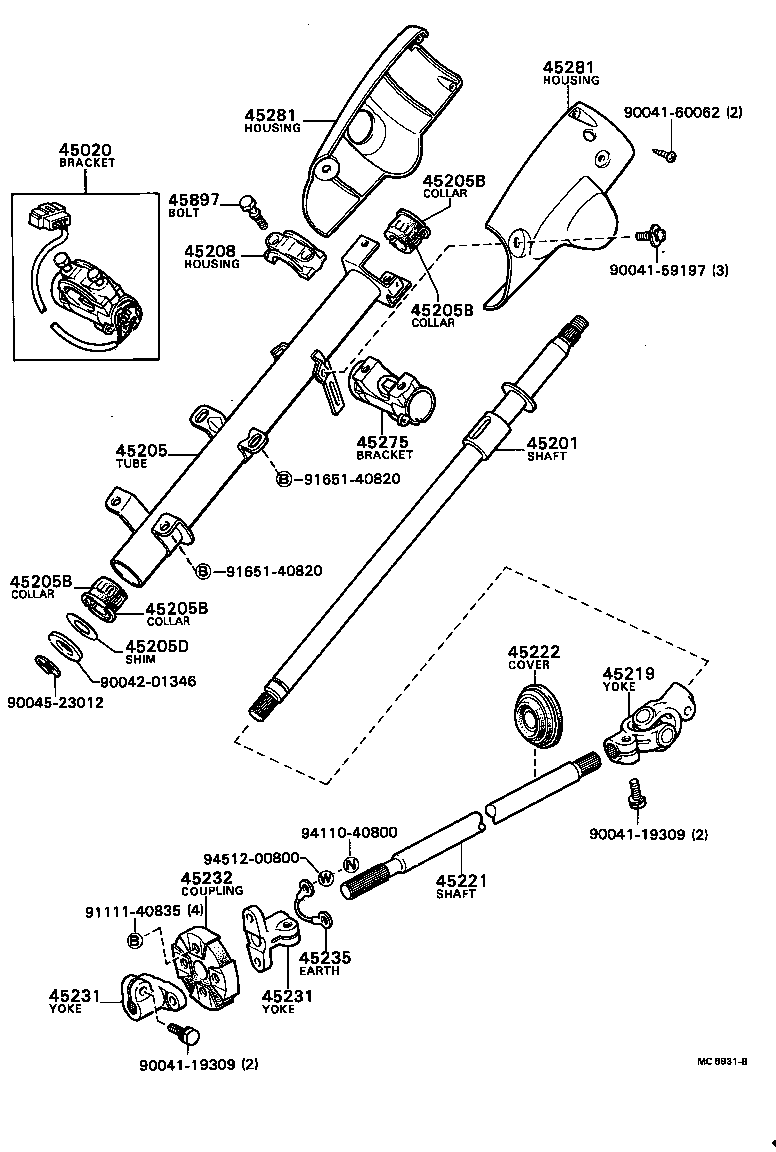

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-87603 |
LD10 |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-87602 |
LD10 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-87606 |
LD10 |
1 | ||
| 45205B - COLLAR(FOR STEERING COLUMN TUBE BUSH) | ||||
| 90043-85042 |
LD10 |
4 | ||
| 45205B - COLLAR(FOR STEERING COLUMN TUBE BUSH) | ||||
| 90043-85042 |
LD10 |
4 | ||
| 45205B - COLLAR(FOR STEERING COLUMN TUBE BUSH) | ||||
| 90043-85042 |
LD10 |
4 | ||
| 45205B - COLLAR(FOR STEERING COLUMN TUBE BUSH) | ||||
| 90043-85042 |
LD10 |
4 | ||
| 45205D - SHIM(FOR STEERING CULUMN TUBE) | ||||
| 90045-64147 |
LD10 |
1 | ||
| 45208 - HOUSING SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45281-87601 |
LD10 |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45230-87502 |
LD10 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-87603 |
LD10 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-87602 |
LD10 |
1 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87601 |
LD10 |
2 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87601 |
LD10 |
2 | ||
| 45232 - COUPLING, MAIN SHAFT FLEXIBLE | ||||
| 45232-87602 |
LD10 |
1 | ||
| 45235 - EARTH, FLEXIBLE COUPLING | ||||
| 45235-87501 |
LD10 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-10011 |
LD10 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87602 |
LD10 LH |
1 | ||
| 45286-87602 |
LD10 RH |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87602 |
LD10 LH |
1 | ||
| 45286-87602 |
LD10 RH |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
LD10 |
2 | ||
| Common parts | ||||
| 90041-19309 | ||||
| 90041-59197 | ||||
| 90041-60062 | ||||
| 90042-01346 | ||||
| 90045-23012 | ||||
| 91111-40835 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

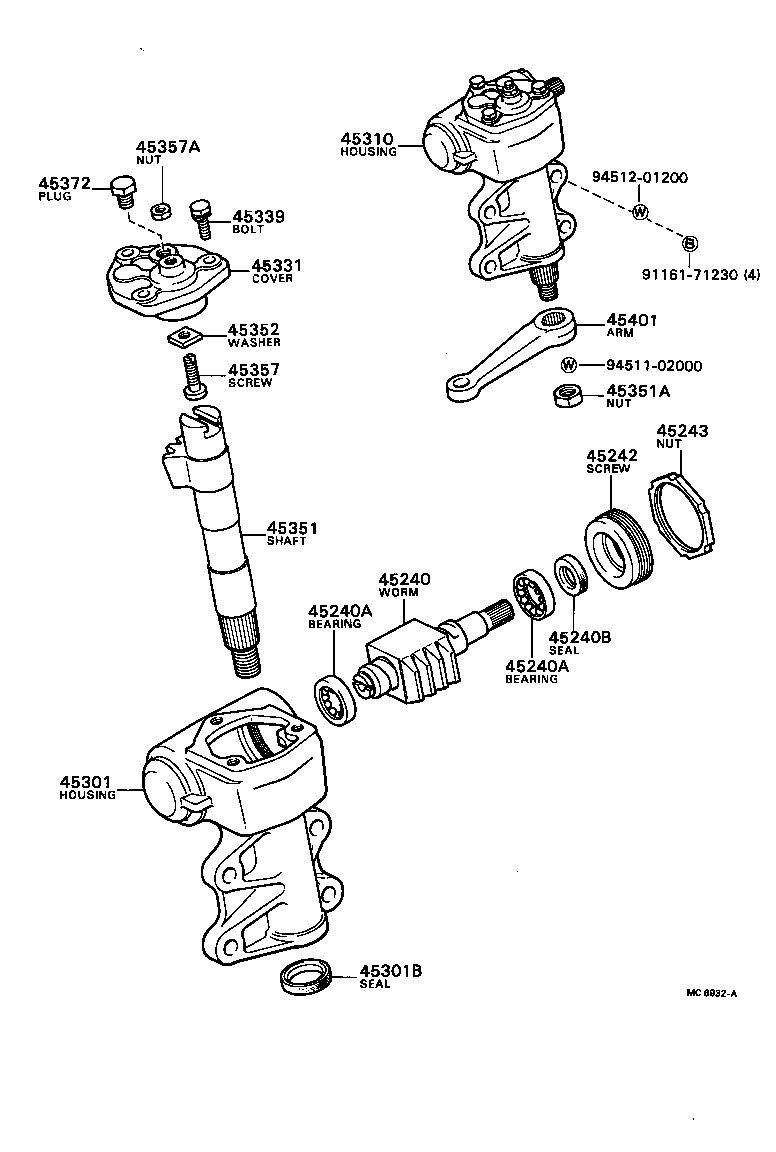

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45220-87605 |
LD10 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90043-63064 |
LD10 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90043-63064 |
LD10 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90043-11117 |
LD10 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-87601 |
LD10 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-87601 |
LD10 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-87606 |
LD10 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90043-11118 |
LD10 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-87603 |
LD10 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-87604 |
LD10 |
1 | ||
| 45339 - BOLT, STEERING GEAR HOUSING | ||||
| 45339-87602 |
LD10 |
3 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-87606 |
LD10 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90041-70158 |
LD10 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45355-87602 |
LD10 T=2.10,T=2.10 |
1 | ||
| 45352-87602 |
LD10 T=2.00,T=2.00 |
1 | ||
| 45353-87602 |
LD10 T=1.95,T=1.95 |
1 | ||
| 45354-87602 |
LD10 T=2.05,T=2.05 |
1 | ||
| 45356-87602 |
LD10 T=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-87604 |
LD10 |
1 | ||
| 45357A - NUT, SECTOR SHAFT ADJUSTING | ||||
| 45358-87602 |
LD10 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90043-45019 |
LD10 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-87607 |
LD10 |
1 | ||
| Common parts | ||||
| 91161-71230 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
