LD10RV-KCQ (1982)
Toyota Blizzard
(8201- )

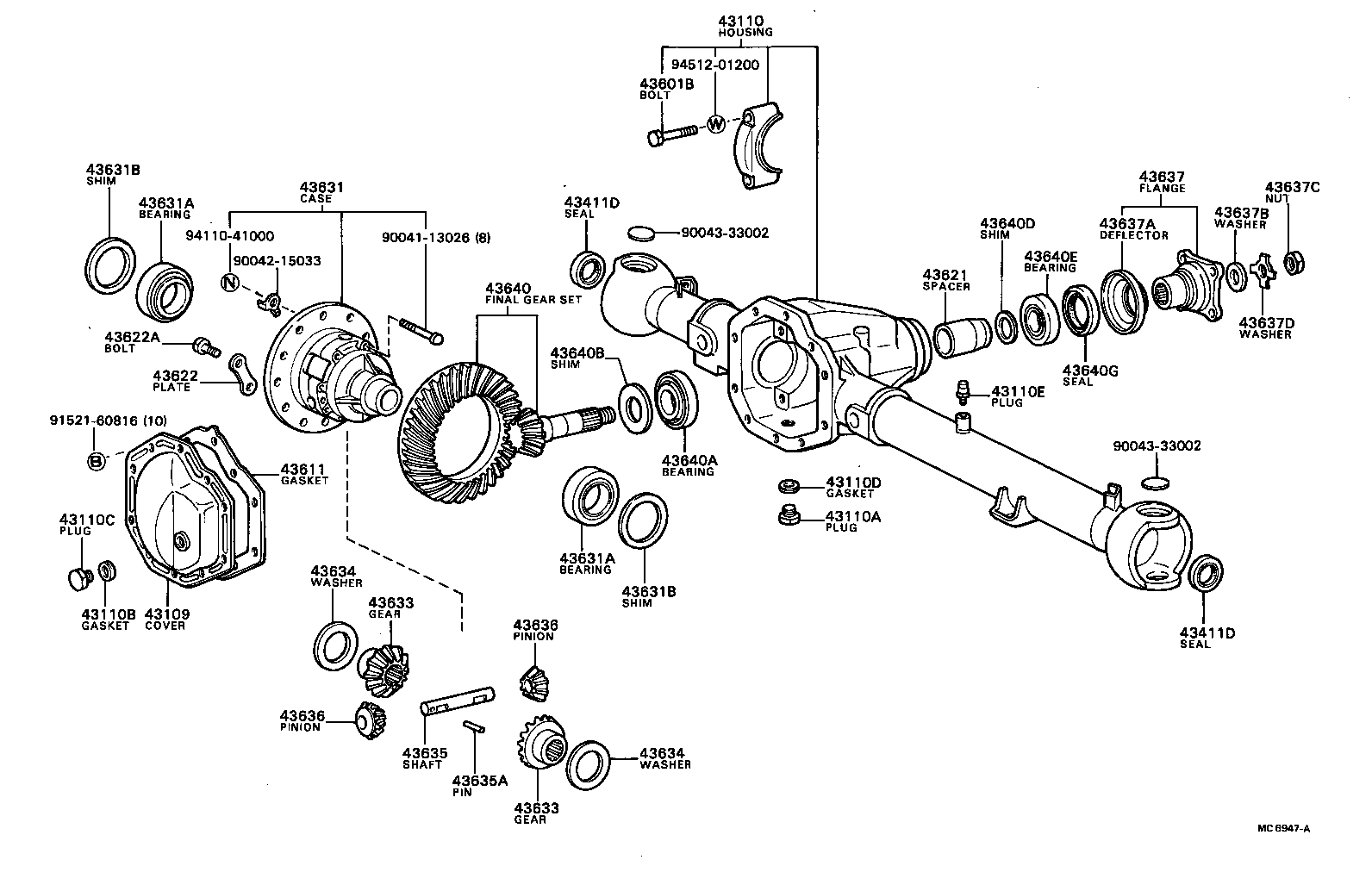

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43109 - COVER SUB-ASSY, FRONT AXLE HOUSING | ||||
| 43109-87604 |
LD10 |
1 | ||
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-87613 |
LD10 |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18057 |
LD10 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
LD10 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18049 |
LD10 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
LD10 |
1 | ||
| 43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING) | ||||
| 90930-03031 |
LD10 |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90043-11086 |
LD10 |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90043-11086 |
LD10 |
2 | ||
| 43601B - BOLT, FRONT AXLE DIFFERENTIAL BEARING CAP | ||||
| 90041-01219 |
LD10 |
4 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-87603 |
LD10 |
1 | ||
| 43621 - SPACER, FRONT AXLE DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-87601 |
LD10 |
1 | ||
| 43622 - PLATE, FRONT AXLE DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 90042-15035 |
LD10 |
6 | ||
| 43622A - BOLT (FOR FRONT AXLE DIFFERENTIAL RING GEAR SET PLATE) | ||||
| 90041-01288 |
LD10 |
12 | ||
| 43631 - CASE, FRONT AXLE DIFFERENTIAL | ||||
| 41301-87602 |
LD10 |
1 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 97600-30209 |
LD10 |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 97600-30209 |
LD10 |
2 | ||
| 43631B - SHIM, FRONT AXLE DIFFERENTIAL BEARING ADJUSTING | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 43631B - SHIM, FRONT AXLE DIFFERENTIAL BEARING ADJUSTING | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE | ||||
| 41331-87601 |
LD10 |
2 | ||
| 43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE | ||||
| 41331-87601 |
LD10 |
2 | ||
| 43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST | ||||
| 41361-87304 |
LD10 T=1.0 |
2 | ||
| 41361-87302 |
LD10 T=0.8 |
2 | ||
| 43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST | ||||
| 41361-87304 |
LD10 T=1.0 |
2 | ||
| 41361-87302 |
LD10 T=0.8 |
2 | ||
| 43635 - SHAFT, FRONT AXLE DIFFERENTIAL PINION | ||||
| 41342-87601 |
LD10 |
1 | ||
| 43635A - PIN, FRONT AXLE DIFFERENTIAL PINION SHAFT | ||||
| 90042-50057 |
LD10 |
1 | ||
| 43636 - PINION, FRONT AXLE DIFFERENTIAL | ||||
| 41341-87304 |
LD10 |
2 | ||
| 43636 - PINION, FRONT AXLE DIFFERENTIAL | ||||
| 41341-87304 |
LD10 |
2 | ||
| 43637 - FLANGE, FRONT AXLE DRIVE PINION, W/DEFLECTOR | ||||
| 41204-87603 |
LD10 |
1 | ||
| 43637A - DEFLECTOR, DUST (FOR FRONT AXLE) | ||||
| 41252-87603 |
LD10 |
1 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90042-01276 |
LD10 |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90041-70137 |
LD10 |
1 | ||
| 43637D - WASHER, LOCK (FOR FRONT AXLE DRIVE PINION) | ||||
| 90042-15029 |
LD10 |
1 | ||
| 43640 - FINAL GEAR SET, FRONT AXLE DIFFERENTIAL | ||||
| 41201-87606 |
LD10 |
1 | ||
| 43640A - BEARING, FRONT AXLE DRIVE PINION, FRONT | ||||
| 90043-66011 |
LD10 |
1 | ||
| 43640B - SHIM, FRONT AXLE DRIVE PINION SPACER REAR ADJUST | ||||
| 90045-64099 |
LD10 T=0.30 |
1 | ||
| 90045-64094 |
LD10 T=3.15 |
1 | ||
| 90045-64093 |
LD10 T=3.10 |
1 | ||
| 90045-64097 |
LD10 T=3.30 |
1 | ||
| 90045-64096 |
LD10 T=3.25 |
1 | ||
| 90045-64098 |
LD10 T=3.35 |
1 | ||
| 90045-64095 |
LD10 T=3.20 |
1 | ||
| 43640D - SHIM, FRONT AXLE DRIVE PINION SPACER FRONT ADJUST | ||||
| 90045-64113 |
LD10 T=0.40 |
1 | ||
| 90045-64114 |
LD10 T=0.50 |
1 | ||
| 90045-64124 |
LD10 T=0.08 |
1 | ||
| 90045-64111 |
LD10 T=0.25 |
1 | ||
| 90045-64112 |
LD10 T=0.30 |
1 | ||
| 43640E - BEARING, FRONT AXLE DRIVE PINION, REAR | ||||
| 97610-30306 |
LD10 |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90043-11131 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-13026 | ||||
| 90042-15033 | ||||
| 90043-33002 | ||||
| 91521-60816 | ||||
| 94110-41000 | ||||
| 94512-01200 | ||||
