LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

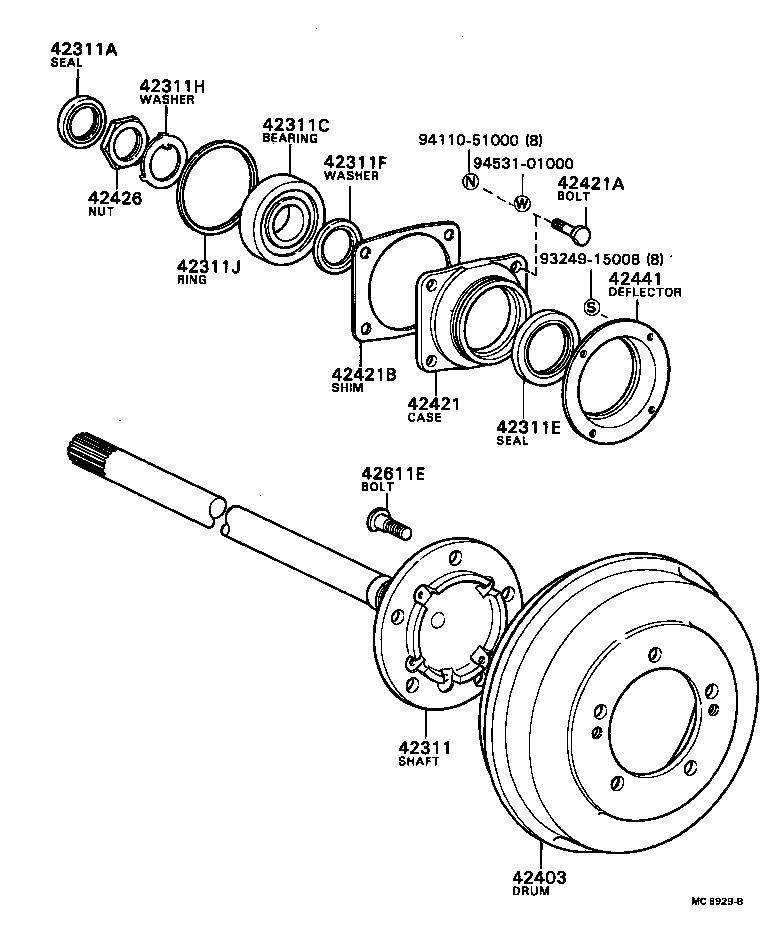

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-87602 |
LD10 RH |
1 | ||
| 42312-87602 |
LD10 LH |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90043-11081 |
LD10 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90043-63028 |
LD10 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90043-11082 |
LD10 |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90042-09062 |
LD10 |
2 | ||
| 42311H - WASHER, LOCK (FOR REAR AXLE SHAFT) | ||||
| 90042-15046 |
LD10 |
2 | ||
| 42311J - RING, O (FOR REAR AXLE SHAFT) | ||||
| 96710-03080 |
LD10 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 43512-87602 |
LD10 |
2 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-87601 |
LD10 |
2 | ||
| 42421A - BOLT (FOR REAR AXLE BEARING CASE) | ||||
| 90041-14010 |
LD10 |
8 | ||
| 42421B - SHIM (FOR REAR AXLE BEARING CASE) | ||||
| 90045-65021 |
LD10 T=0.10 |
2 | ||
| 90045-65031 |
LD10 T=0.45 |
1 | ||
| 90045-65022 |
LD10 T=0.15 |
1 | ||
| 42426 - NUT, REAR AXLE BEARING LOCK, INNER | ||||
| 42426-87601 |
LD10 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42442-87601 |
LD10 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90049-12025 |
LD10 |
10 | ||
| Common parts | ||||
| 93249-15008 | ||||
| 94110-51000 | ||||
| 94531-01000 | ||||
