LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

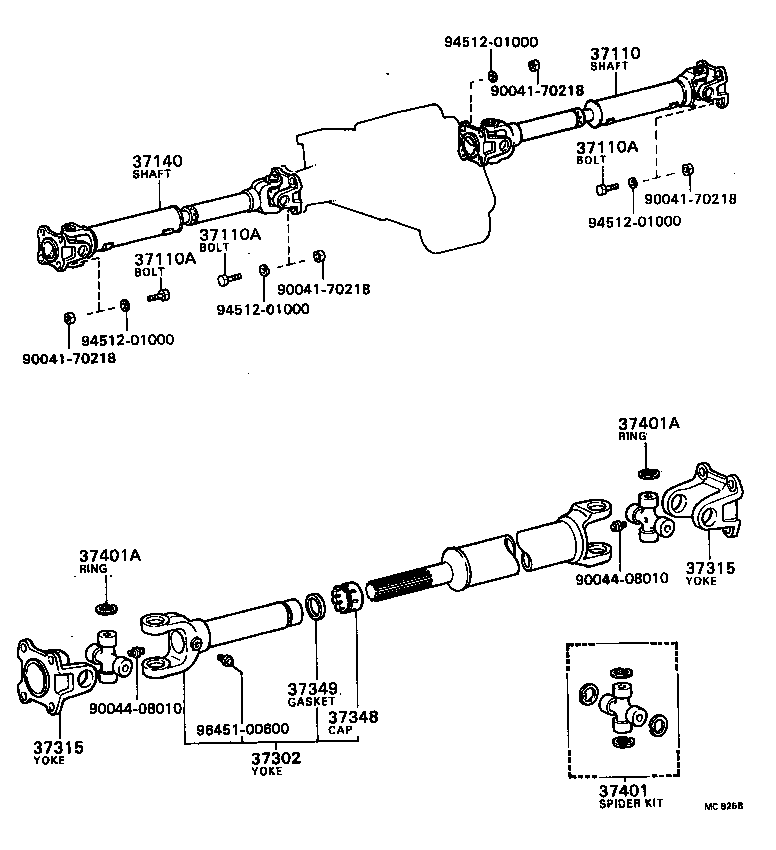

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-87606 |
LD10 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90041-01182 |
LD10 |
12 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90041-01182 |
LD10 |
12 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90041-01182 |
LD10 |
12 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-87606 |
LD10 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-87605 |
LD10 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-87308 |
LD10 |
4 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-87308 |
LD10 |
4 | ||
| 37348 - CAP, RETAINER | ||||
| 37348-87302 |
LD10 |
2 | ||
| 37349 - GASKET, RETAINER CAP | ||||
| 37349-87302 |
LD10 |
2 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-87303 |
LD10 |
4 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90045-21046 |
LD10 T=1.45 |
16 | ||
| 90045-21047 |
LD10 T=1.50 |
16 | ||
| 90045-21048 |
LD10 T=1.55 |
16 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90045-21046 |
LD10 T=1.45 |
16 | ||
| 90045-21047 |
LD10 T=1.50 |
16 | ||
| 90045-21048 |
LD10 T=1.55 |
16 | ||
| Common parts | ||||
| 90041-70218 | ||||
| 90044-08010 | ||||
| 94512-01000 | ||||
| 96451-00600 | ||||
