LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

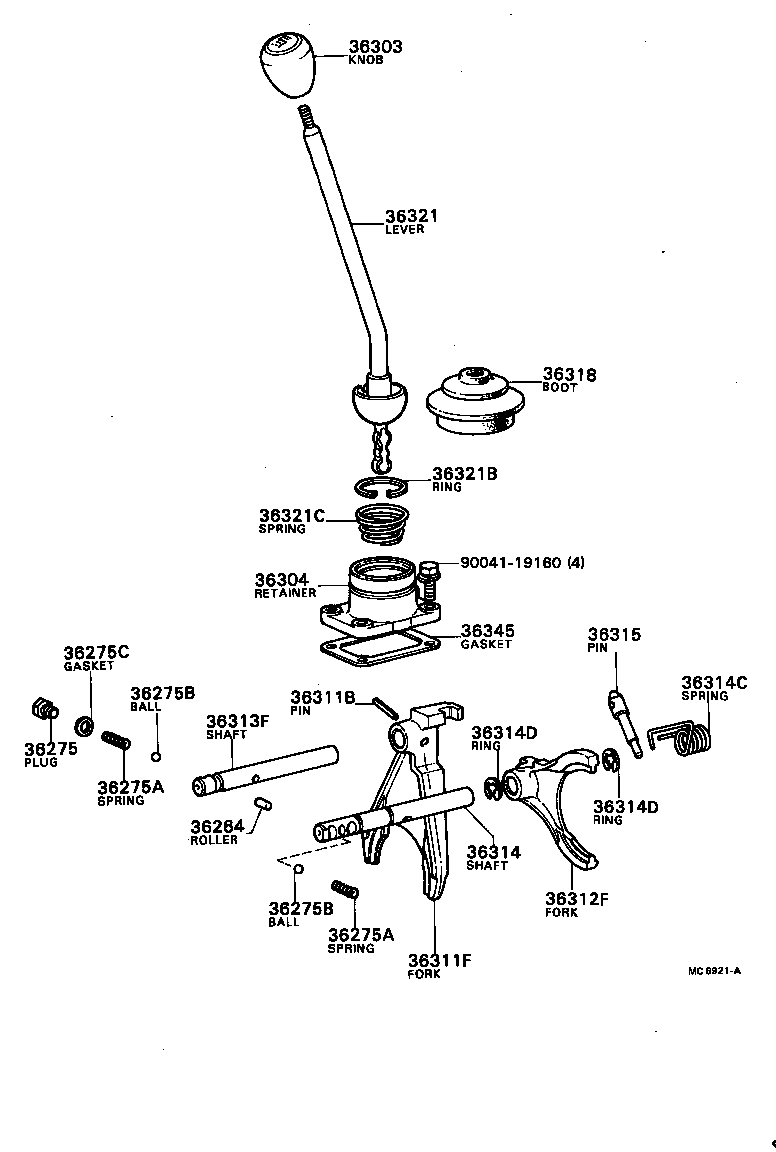

(8201-8210)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90043-61012 |
LD10 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90041-01216 |
LD10 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01137 |
LD10 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01137 |
LD10 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD10 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD10 |
2 | ||
| 36275C - GASKET (FOR SHIFT DETENT BALL SPRING PLUG) | ||||
| 90044-30026 |
LD10 |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-87601 |
LD10 |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36107-87604 |
LD10 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90042-54021 |
LD10 |
1 | ||
| 90042-54022 |
LD10 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-87604 |
LD10 |
1 | ||
| 36311-87603 |
LD10 |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-87605 |
LD10 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-87602 |
LD10 |
1 | ||
| 36313-87603 |
LD10 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-87605 |
LD10 |
1 | ||
| 36314C - SPRING (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 90045-08131 |
LD10 |
1 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD10 |
2 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD10 |
2 | ||
| 36315 - PIN, TRANSFER FORK SHAFT | ||||
| 36315-87602 |
LD10 |
1 | ||
| 36315-87601 |
LD10 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-87602 |
LD10 |
1 | ||
| 36321 - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36321-87609 |
LD10 |
1 | ||
| 36321-87605 |
LD10 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90045-21030 |
LD10 |
1 | ||
| 36321C - SPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT) | ||||
| 90045-02014 |
LD10 |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36164-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19160 | ||||

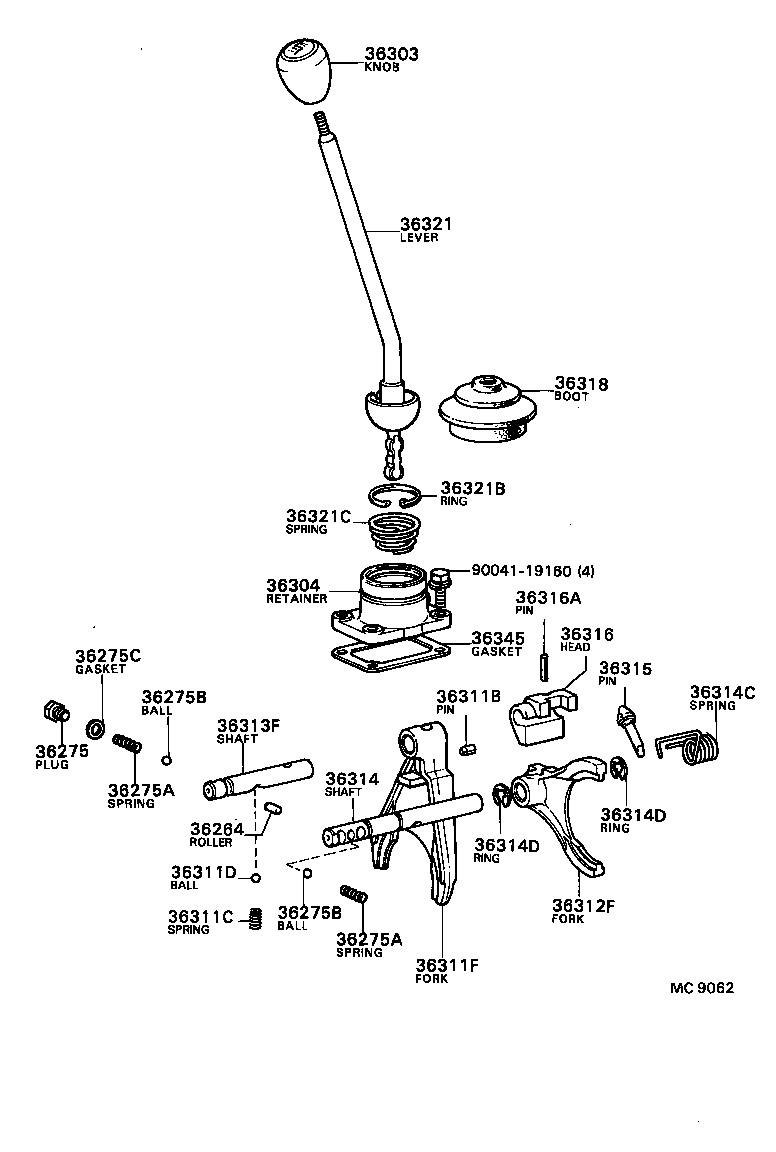

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90043-61012 |
LD10 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90041-01216 |
LD10 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01137 |
LD10 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01137 |
LD10 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD10 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD10 |
2 | ||
| 36275C - GASKET (FOR SHIFT DETENT BALL SPRING PLUG) | ||||
| 90044-30026 |
LD10 |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-87601 |
LD10 |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36107-87604 |
LD10 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90042-54021 |
LD10 |
1 | ||
| 90042-54022 |
LD10 |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90045-01284 |
LD10 |
1 | ||
| 36311D - BALL (FOR SHIFT FORK) | ||||
| 90043-60023 |
LD10 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-87604 |
LD10 |
1 | ||
| 36311-87603 |
LD10 |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-87605 |
LD10 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-87602 |
LD10 |
1 | ||
| 36313-87603 |
LD10 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-87605 |
LD10 |
1 | ||
| 36314C - SPRING (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 90045-08131 |
LD10 |
1 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD10 |
2 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD10 |
2 | ||
| 36315 - PIN, TRANSFER FORK SHAFT | ||||
| 36315-87602 |
LD10 |
1 | ||
| 36315-87601 |
LD10 |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-87601 |
LD10 |
1 | ||
| 36316A - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT HEAD) | ||||
| 90042-54042 |
LD10 L=40 |
1 | ||
| 90042-54022 |
LD10 L=25 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-87602 |
LD10 |
1 | ||
| 36321 - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36321-87609 |
LD10 |
1 | ||
| 36321-87605 |
LD10 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90045-21030 |
LD10 |
1 | ||
| 36321C - SPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT) | ||||
| 90045-02014 |
LD10 |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36164-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19160 | ||||
