LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

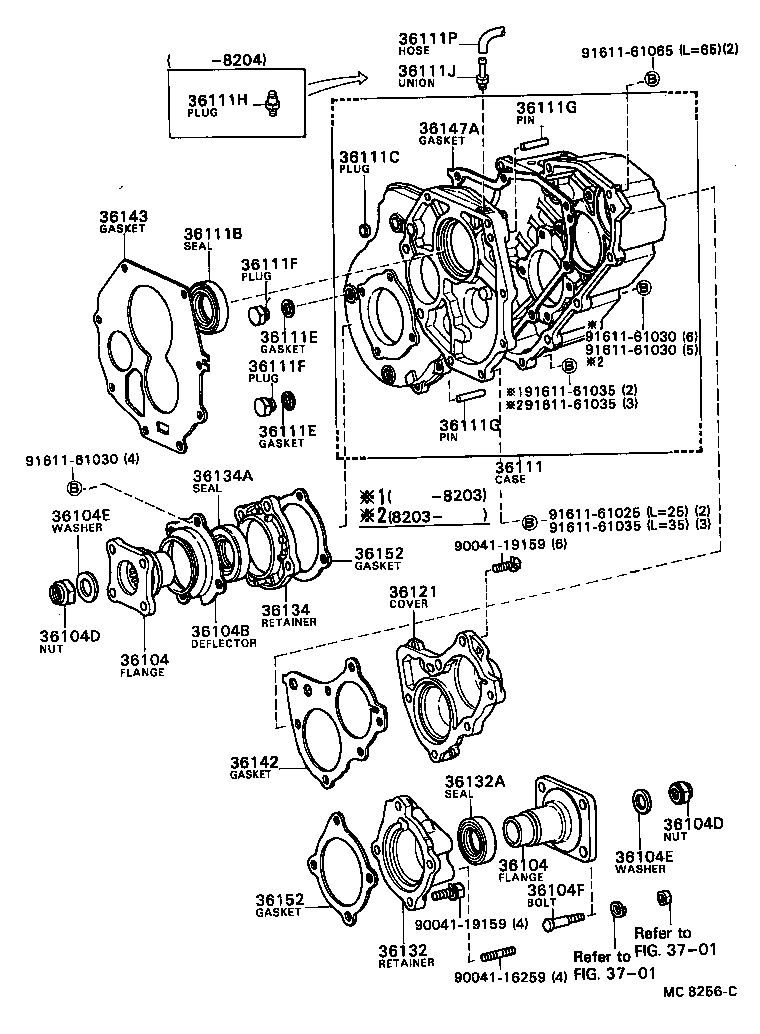

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36245-87604 |
LD10 FR DRIVE |
1 | ||
| 33324-87601 |
LD10 RR DRIVE |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36245-87604 |
LD10 FR DRIVE |
1 | ||
| 33324-87601 |
LD10 RR DRIVE |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36246-87603 |
LD10 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90041-78010 |
LD10 RR DRIVE |
1 | ||
| 90041-78011 |
LD10 FR DRIVE |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90041-78010 |
LD10 RR DRIVE |
1 | ||
| 90041-78011 |
LD10 FR DRIVE |
1 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90042-01410 |
LD10 RR DRIVE |
1 | ||
| 90042-01300 |
LD10 FR DRIVE |
1 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90042-01410 |
LD10 RR DRIVE |
1 | ||
| 90042-01300 |
LD10 FR DRIVE |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90041-14020 |
LD10 |
4 | ||
| 36111 - CASE, TRANSFER | ||||
| 36101-87684 |
LD10 |
1 | ||
| 36101-87685 |
LD10 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90043-16003 |
LD10 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90331-16050 |
LD10 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 12157-10010 |
LD10 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 12157-10010 |
LD10 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18049 |
LD10 FILLER PLUG |
1 | ||
| 90341-18057 |
LD10 DRAIN PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18049 |
LD10 FILLER PLUG |
1 | ||
| 90341-18057 |
LD10 DRAIN PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90042-50003 |
LD10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90042-50003 |
LD10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03031 |
LD10 |
1 | ||
| 36111J - UNION, BREATHER, NO.1 (FOR TRANSFER) | ||||
| 90044-05083 |
LD10 |
1 | ||
| 36111P - HOSE, BREATHER (FOR TRANSFER CASE) | ||||
| 90044-46372 |
LD10 |
1 | ||
| 90044-46364 |
LD10 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-87605 |
LD10 |
1 | ||
| 36121-87603 |
LD10 |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-87604 |
LD10 |
1 | ||
| 36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER) | ||||
| 90043-16005 |
LD10 |
1 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-87603 |
LD10 |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90043-16006 |
LD10 |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36141-87603 |
LD10 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-87603 |
LD10 |
1 | ||
| 36147A - GASKET, TRANSFER CASE | ||||
| 36146-87602 |
LD10 |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36152-87601 |
LD10 RR |
1 | ||
| 36154-87601 |
LD10 FR |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36152-87601 |
LD10 RR |
1 | ||
| 36154-87601 |
LD10 FR |
1 | ||
| Common parts | ||||
| 90041-16259 | ||||
| 90041-19159 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61065 | ||||
| Linked diagrams | ||||
| 3701 | ||||
