LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

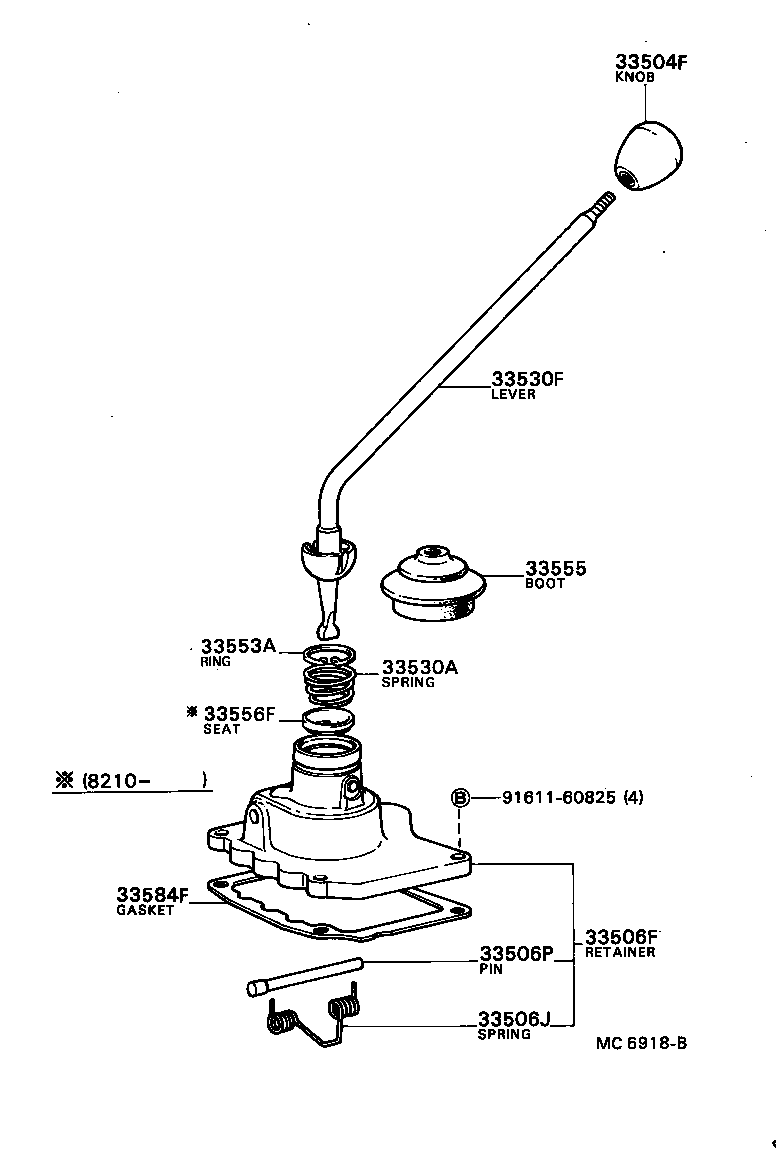

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-87205 |
LD10 |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-87607 |
LD10 |
1 | ||
| 33506-87608 |
LD10 |
1 | ||
| 33506J - SPRING(FOR SHIFT LEVER STOPPER PIN) | ||||
| 90045-08145 |
LD10 |
1 | ||
| 33506P - PIN, SHIFT LEVER STOPPER | ||||
| 33566-87601 |
LD10 |
1 | ||
| 33530A - SPRING, COMPRESSION (FOR SHIFT LEVER) | ||||
| 90045-02035 |
LD10 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-87608 |
LD10 |
1 | ||
| 33541-87606 |
LD10 |
1 | ||
| 33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET) | ||||
| 90045-21030 |
LD10 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-87602 |
LD10 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-87601 |
LD10 |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33272-87301 |
LD10 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
