LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

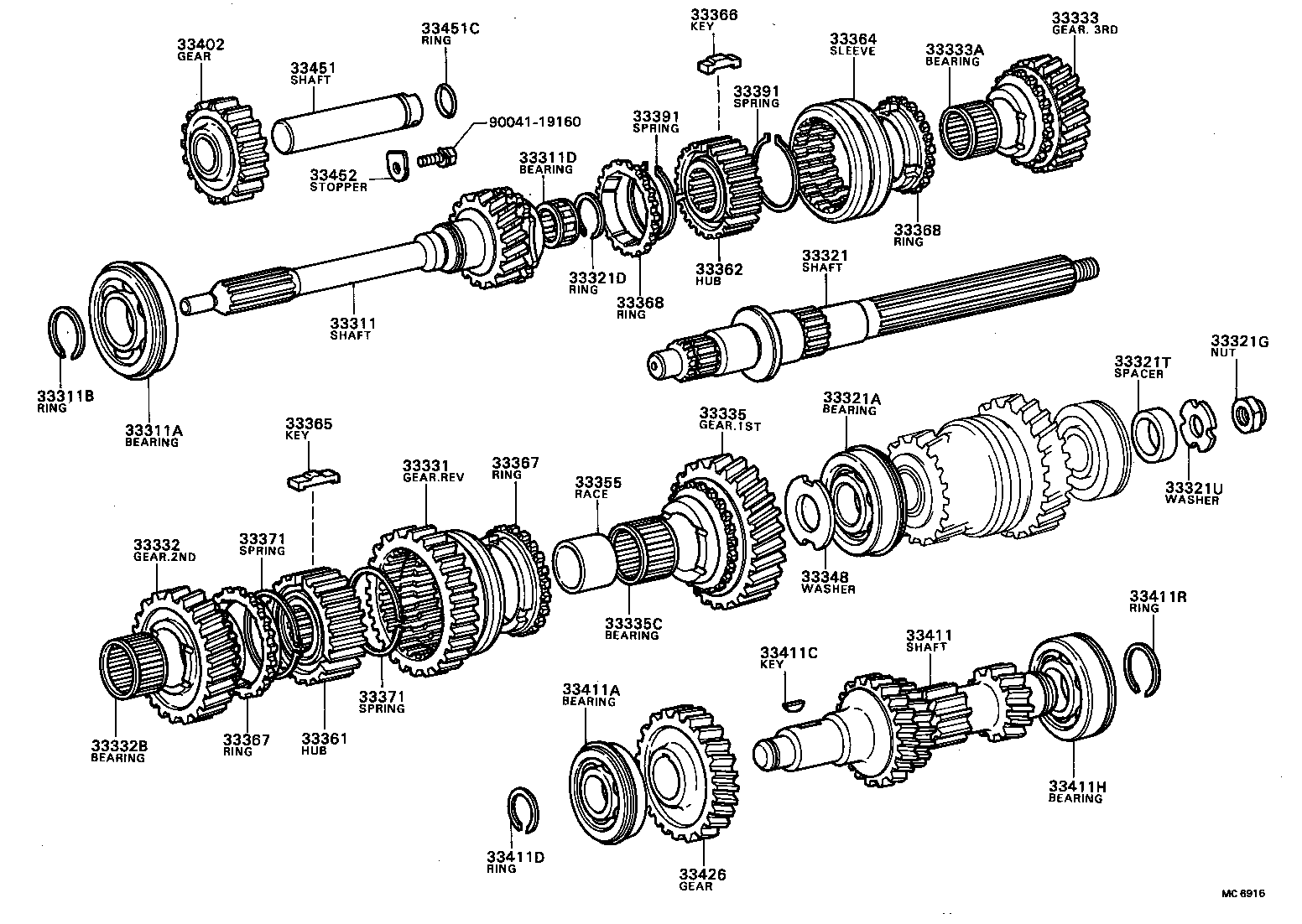

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-87607 |
LD10 |
1 | ||
| 33311-87608 |
LD10 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90043-63072 |
LD10 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90045-20079 |
LD10 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90043-64037 |
LD10 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-87308 |
LD10 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90043-63059 |
LD10 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90045-20080 |
LD10 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90041-78010 |
LD10 |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 36252-87602 |
LD10 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 36734-87601 |
LD10 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-87311 |
LD10 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-87305 |
LD10 |
1 | ||
| 33332-87304 |
LD10 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90043-64031 |
LD10 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-87606 |
LD10 |
1 | ||
| 33333-87607 |
LD10 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90043-64032 |
LD10 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-87603 |
LD10 |
1 | ||
| 33335-87602 |
LD10 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90043-64031 |
LD10 |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-87303 |
LD10 |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-87302 |
LD10 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-87302 |
LD10 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-87303 |
LD10 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33363-87304 |
LD10 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-87303 |
LD10 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-87303 |
LD10 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-87303 |
LD10 1ST GEAR |
1 | ||
| 33368-87304 |
LD10 2ND GEAR |
1 | ||
| 33367-87601 |
LD10 1ST GEAR |
1 | ||
| 33368-87601 |
LD10 2ND GEAR |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-87303 |
LD10 1ST GEAR |
1 | ||
| 33368-87304 |
LD10 2ND GEAR |
1 | ||
| 33367-87601 |
LD10 1ST GEAR |
1 | ||
| 33368-87601 |
LD10 2ND GEAR |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33369-87303 |
LD10 |
2 | ||
| 33369-87601 |
LD10 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33369-87303 |
LD10 |
2 | ||
| 33369-87601 |
LD10 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-87303 |
LD10 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-87303 |
LD10 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-87303 |
LD10 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-87303 |
LD10 |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-87311 |
LD10 |
1 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-87609 |
LD10 |
1 | ||
| 33411-87611 |
LD10 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90043-63060 |
LD10 |
1 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90042-80023 |
LD10 |
1 | ||
| 90042-80017 |
LD10 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90045-20081 |
LD10 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 97180-06307 |
LD10 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90045-20082 |
LD10 |
1 | ||
| 33426 - GEAR, COUNTER SHAFT DRIVE | ||||
| 33426-87603 |
LD10 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-87604 |
LD10 |
1 | ||
| 33451-87606 |
LD10 |
1 | ||
| 33451C - RING, O (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 96711-19028 |
LD10 |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-87301 |
LD10 |
1 | ||
| 33452-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19160 | ||||
