LD10RV-KCQ (1982)

Toyota Blizzard

Production Jan 1982 - Apr 1984
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

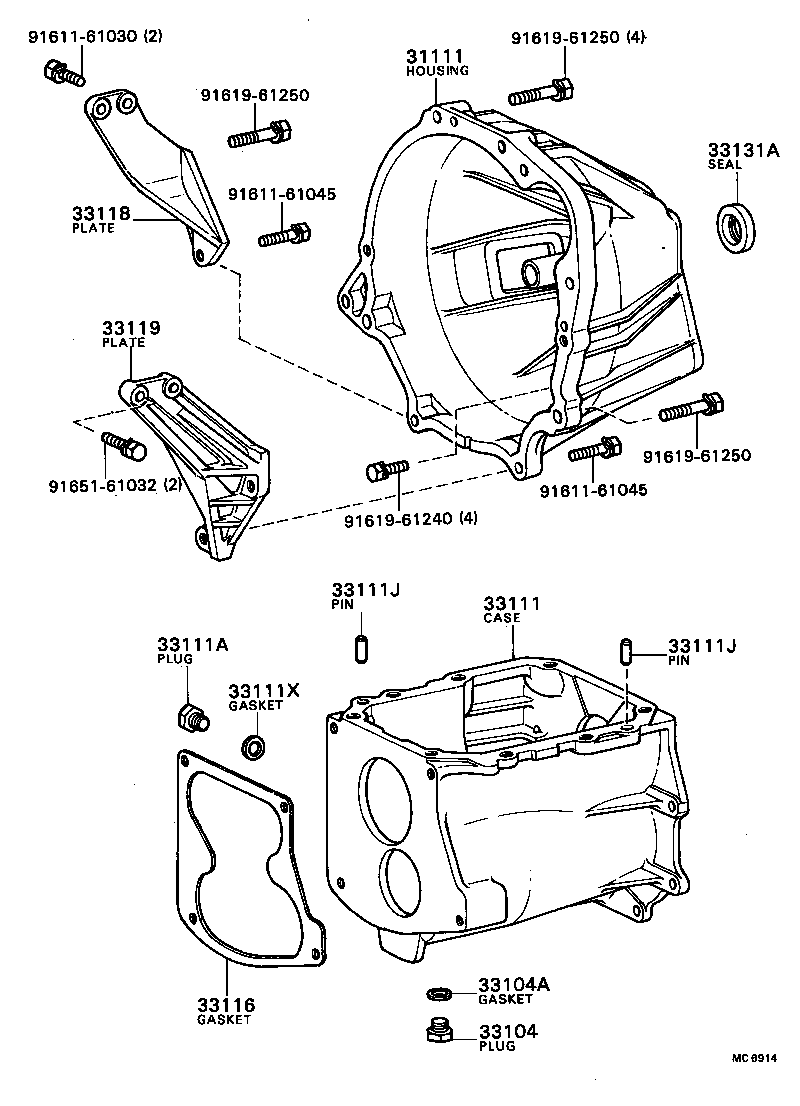

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111J 33111J 33111X 33116 33118 33119 33131A 9161161030 9161161045 9161161045 9161961240 9161961250 9161961250 9161961250 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-87609

LD10

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LD10

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LD10

 1
33111 - CASE, MANUAL TRANSMISSION
33111-87319

LD10

 1
33111-87603

LD10

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18049

LD10

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90042-50003

LD10

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90042-50003

LD10

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LD10

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33116-87302

LD10

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-87601

LD10

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LD10

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90043-11141

LD10

 1
Common parts
91611-61030
91611-61045
91619-61240
91619-61250
91651-61032
