LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

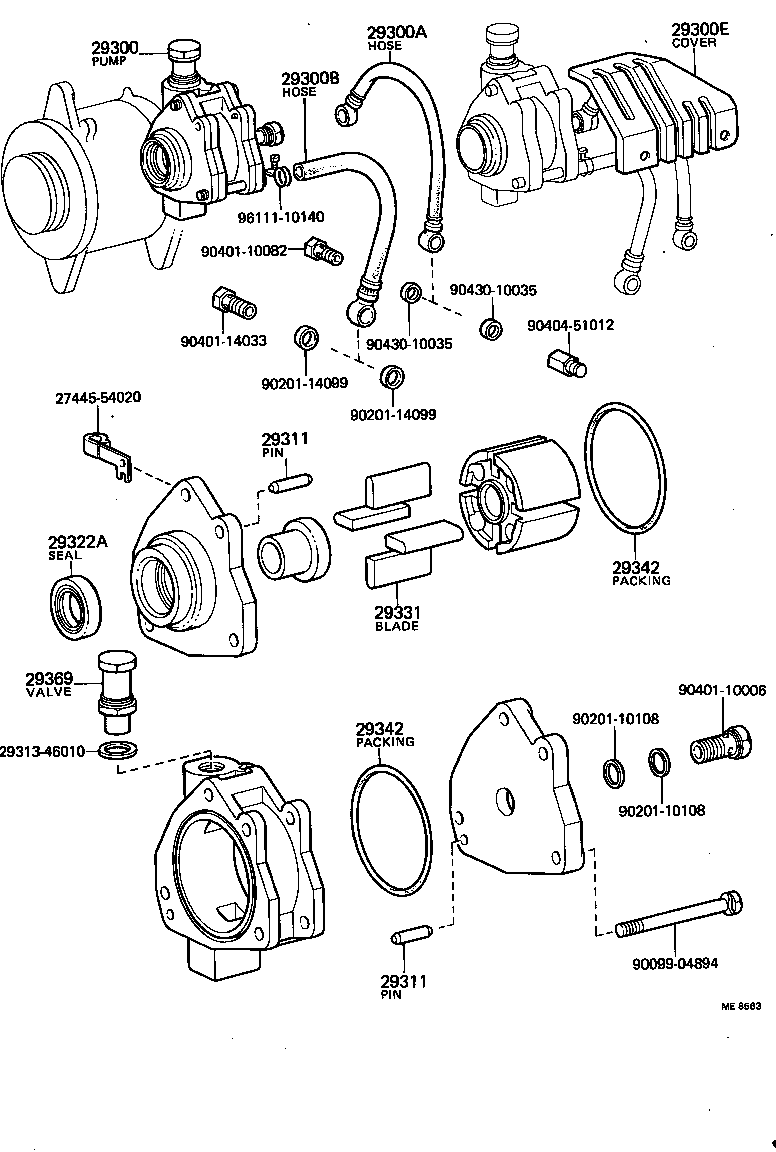

(8201-8210)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-54050 |
L..LD10 |
1 | ||
| 29300-54021 |
L..LD10 |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02077 |
L..LD10 |
1 | ||
| 90923-02056 |
L..LD10 |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02052 |
L..LD10 |
1 | ||
| 90923-02076 |
L..LD10 |
1 | ||
| 29300E - COVER, OIL HOSE | ||||
| 27029-54010 |
L..LD10 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
L..LD10 |
4 | ||
| 90099-08082 |
L..LD10 |
4 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
L..LD10 |
4 | ||
| 90099-08082 |
L..LD10 |
4 | ||
| 29322A - SEAL, VACUUM PUMP OIL | ||||
| 90099-15017 |
L..LD10 |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56010 |
L..LD10 |
4 | ||
| 29331-56070 |
L..LD10 |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
L..LD10 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
L..LD10 |
2 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-54010 |
L..LD10 |
1 | ||
| 29369-56070 |
L..LD10 |
1 | ||
| Common parts | ||||
| 27445-54020 | ||||
| 29313-46010 | ||||
| 90099-04894 | ||||
| 90201-10108 | ||||
| 90201-14099 | ||||
| 90401-10006 | ||||
| 90401-10082 | ||||
| 90401-14033 | ||||
| 90404-51012 | ||||
| 90430-10035 | ||||
| 96111-10140 | ||||

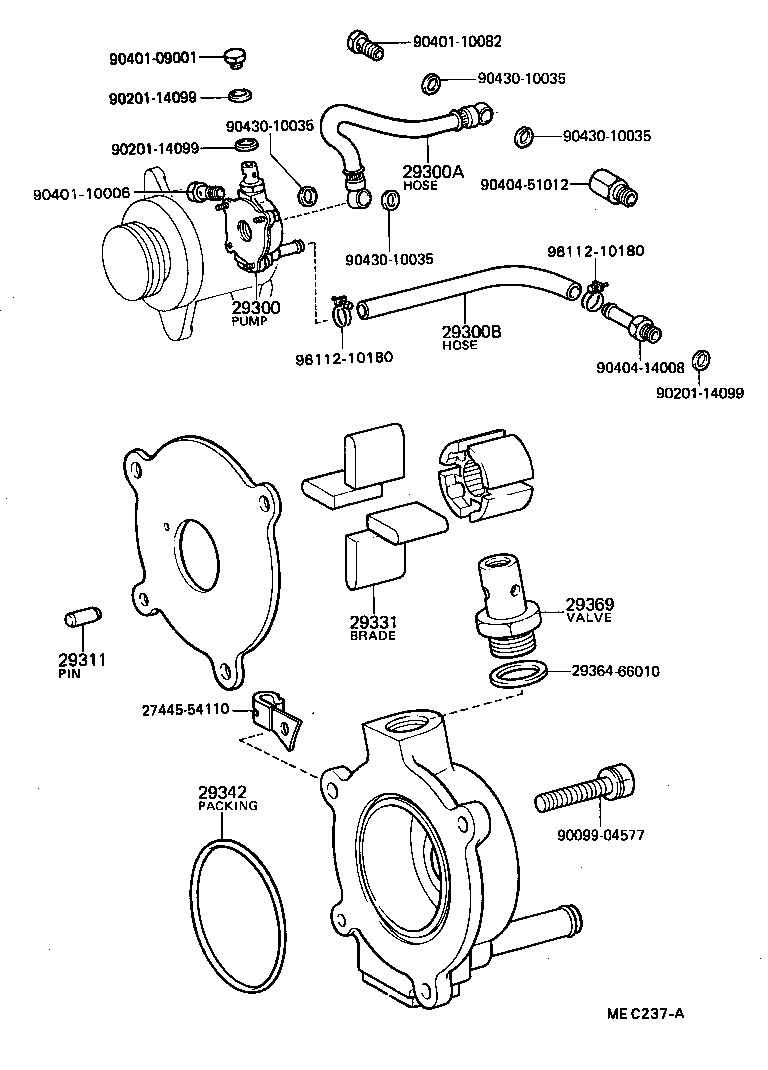

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-54050 |
L..LD10 |
1 | ||
| 29300-54021 |
L..LD10 |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02077 |
L..LD10 |
1 | ||
| 90923-02056 |
L..LD10 |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02052 |
L..LD10 |
1 | ||
| 90923-02076 |
L..LD10 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
L..LD10 |
4 | ||
| 90099-08082 |
L..LD10 |
4 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56010 |
L..LD10 |
4 | ||
| 29331-56070 |
L..LD10 |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
L..LD10 |
2 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-54010 |
L..LD10 |
1 | ||
| 29369-56070 |
L..LD10 |
1 | ||
| Common parts | ||||
| 27445-54110 | ||||
| 29364-66010 | ||||
| 90099-04577 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90401-10006 | ||||
| 90401-10082 | ||||
| 90404-14008 | ||||
| 90404-51012 | ||||
| 90430-10035 | ||||
| 96112-10180 | ||||
