LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

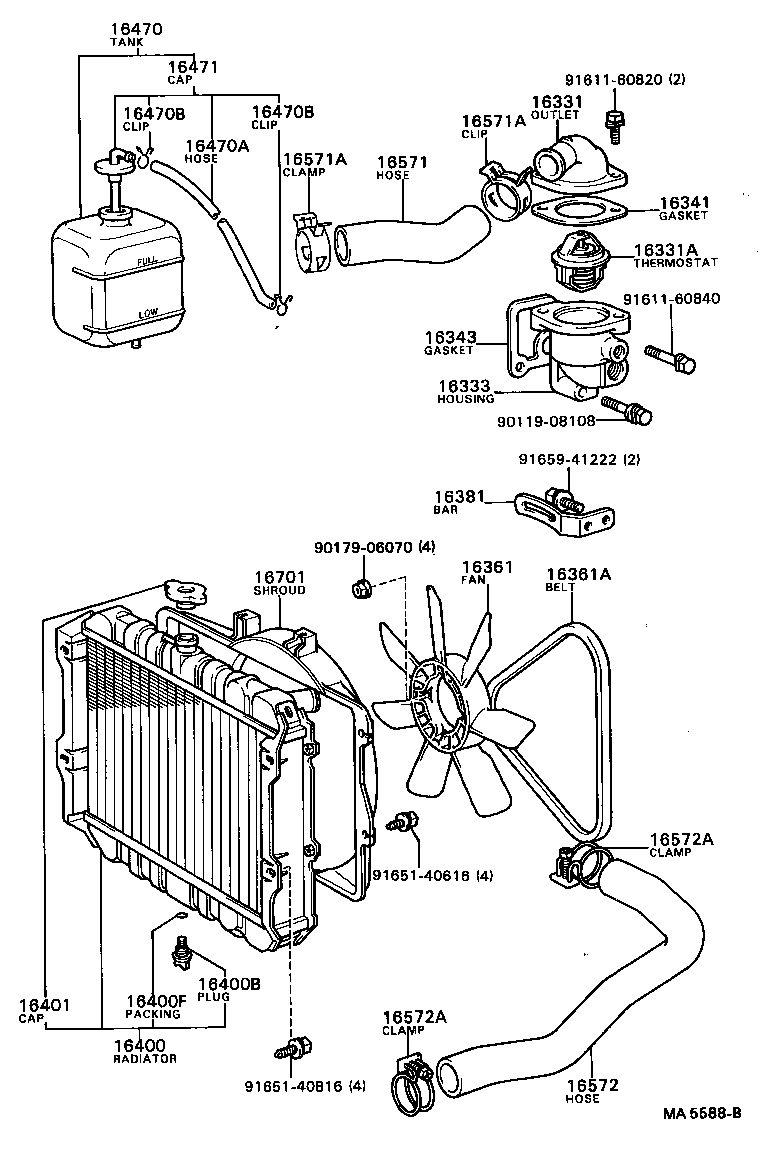

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54010 |
L..LD10 |
1 | ||
| 16331-54020 |
L..LD10 W/COOLER |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03061 |
L..LD10 *WAX 82-95 |
1 | ||
| 90916-03062 |
L..LD10 *WAX 88-100,*WAX 88-100,COLD SPEC |
1 | ||
| 90916-03062 |
L..LD10 *WAX 88-100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54011 |
L..LD10 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-41010 |
L..LD10 |
1 | ||
| 16341-54020 |
L..LD10 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
L..LD10 |
1 | ||
| 16361 - FAN | ||||
| 16361-34030 |
L..LD10 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LD10 L=985 |
1 | ||
| 90916-02133 |
L..LD10 L=990 |
1 | ||
| 99332-11000 |
L..LD10 L=1000 |
1 | ||
| 99332-10985 |
L..LD10 L=985 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L..LD10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-87610 |
L..LD10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09052 |
L..LD10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
L..LD10 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87706 |
L..LD10 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-87606 |
L..LD10 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12730 |
L..LD10 *H,L=410 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LD10 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LD10 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-87606 |
L..LD10 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-87608 |
L..LD10 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LD10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LD10 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-87607 |
L..LD10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
L..LD10 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
L..LD10 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-87610 |
L..LD10 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
