LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

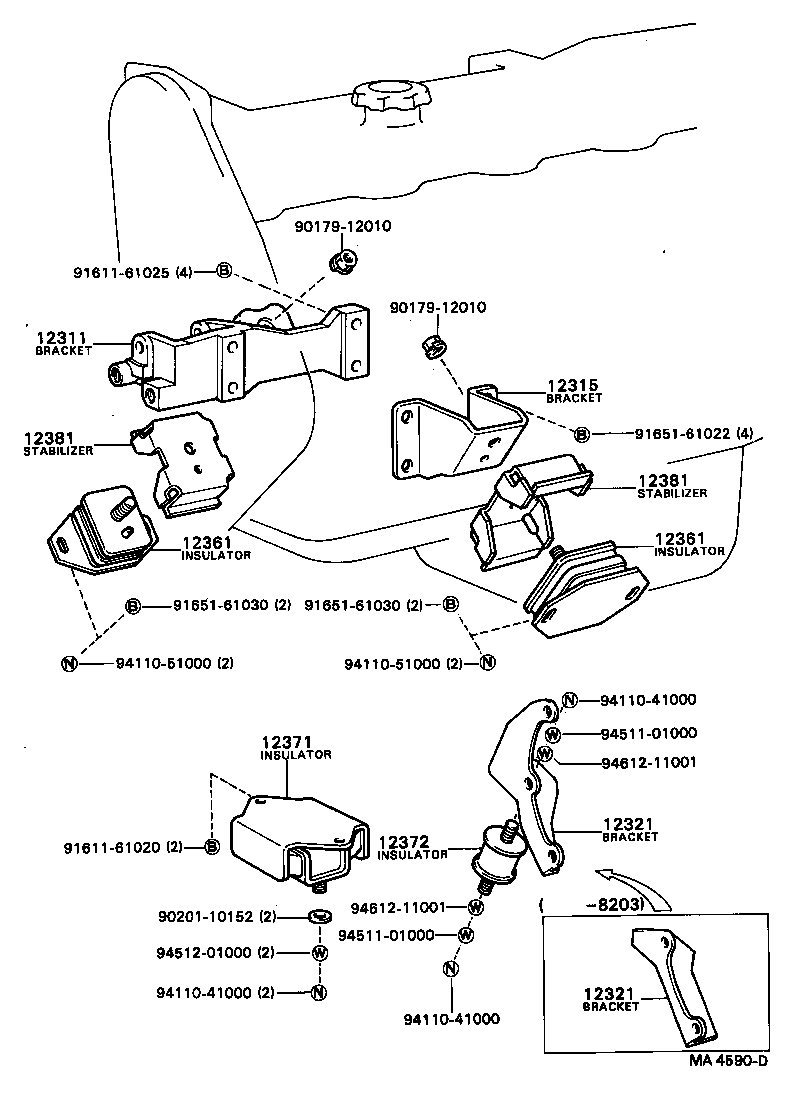

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-54040 |
L..LD10 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-54011 |
L..LD10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12322-87606 |
L..LD10 |
1 | ||
| 12322-87605 |
L..LD10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12322-87606 |
L..LD10 |
1 | ||
| 12322-87605 |
L..LD10 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54050 |
L..LD10 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54050 |
L..LD10 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-87603 |
L..LD10 |
1 | ||
| 12372 - INSULATOR, ENGINE MOUNTING, REAR NO.2 | ||||
| 12372-87602 |
L..LD10 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54010 |
L..LD10 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54010 |
L..LD10 |
2 | ||
| Common parts | ||||
| 90179-12010 | ||||
| 90201-10152 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91651-61030 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
