LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

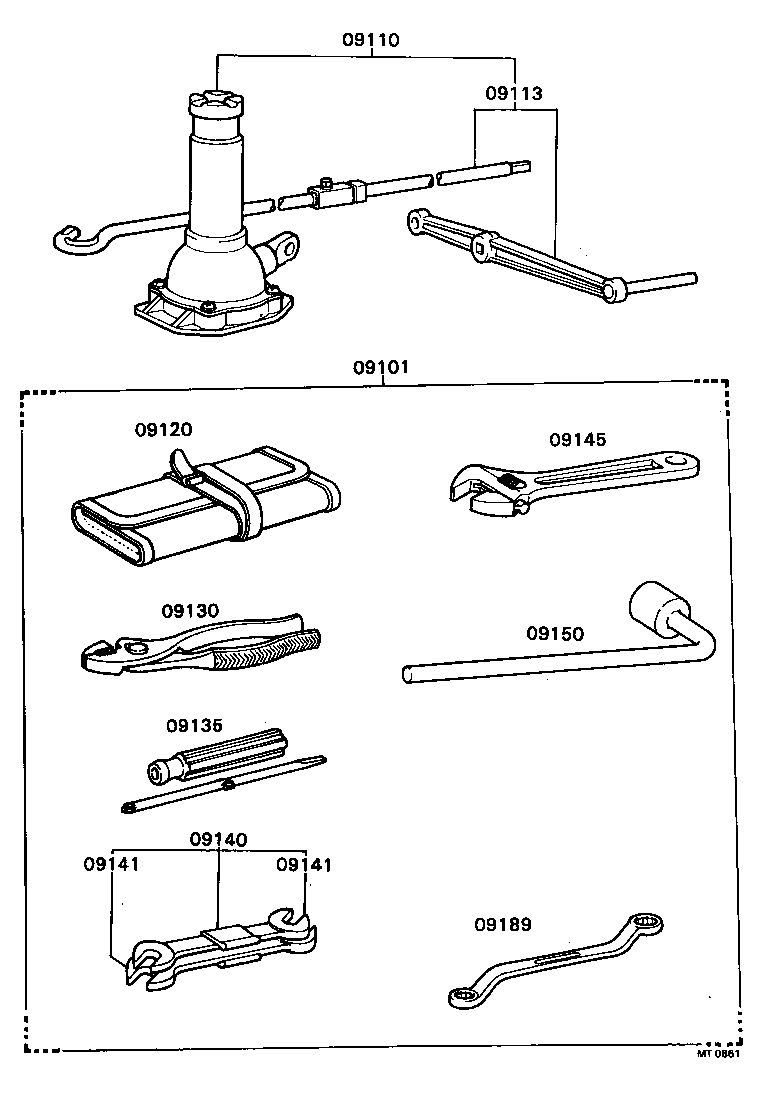

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09101-26202 |
LD10 |
1 | ||
| 09101-60200 |
LD10 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-27021 |
LD10 |
1 | ||
| 09110-27020 |
LD10 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-28020 |
LD10 |
1 | ||
| 09113-27012 |
LD10 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-26021 |
LD10 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
LD10 |
1 | ||
| 09130-00010 |
LD10 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
LD10 |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-27010 |
LD10 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
LD10 10 X 12,10X12 |
1 | ||
| 99914-11417 |
LD10 14 X 17,14X17 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
LD10 10 X 12,10X12 |
1 | ||
| 99914-11417 |
LD10 14 X 17,14X17 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 09145-00020 |
LD10 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-26010 |
LD10 |
1 | ||
| 09189 - WRENCH, OFFSET | ||||
| 99912-11012 |
LD10 |
1 | ||
